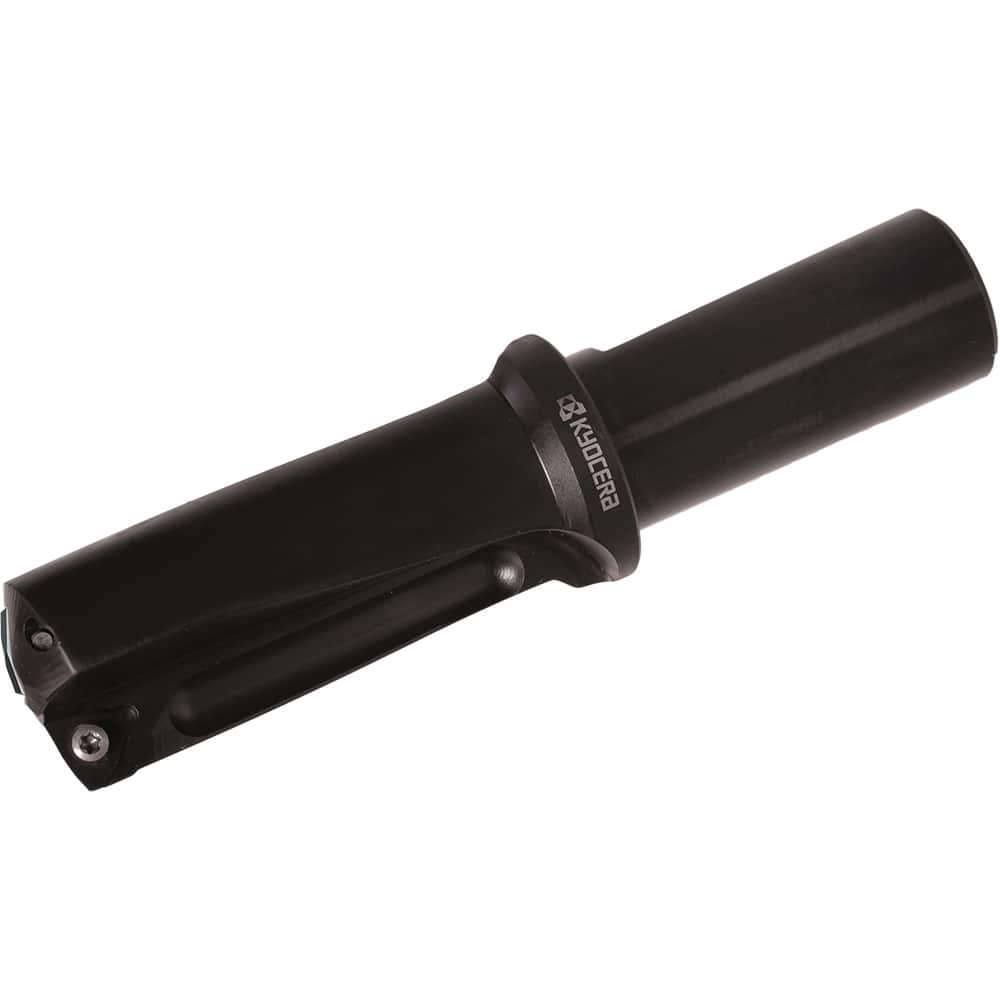

Kyocera - Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 41.00 ; Maximum Drill Depth (mm): 73.15 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Cutting Direction: Right Hand
Item #: 28494979
Brand: Kyocera
Model #: 8600852
Product Specifications
Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 41.00 ; Maximum Drill Depth (mm): 73.15 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Cutting Direction: Right Hand
| Drill Style | DR |
| Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 73.15 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.25 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1.75xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 3 |
| Maximum Drill Diameter (mm) | 41.00 |
| Overall Length/Projection (mm) | 156.46 |
| Insert Compatibility | WCMX |
| Flute Length (mm) | 73.15 |
| Body Length (mm) | 98.550 |
| Shank Length (Decimal Inch) | 2.2800 |
