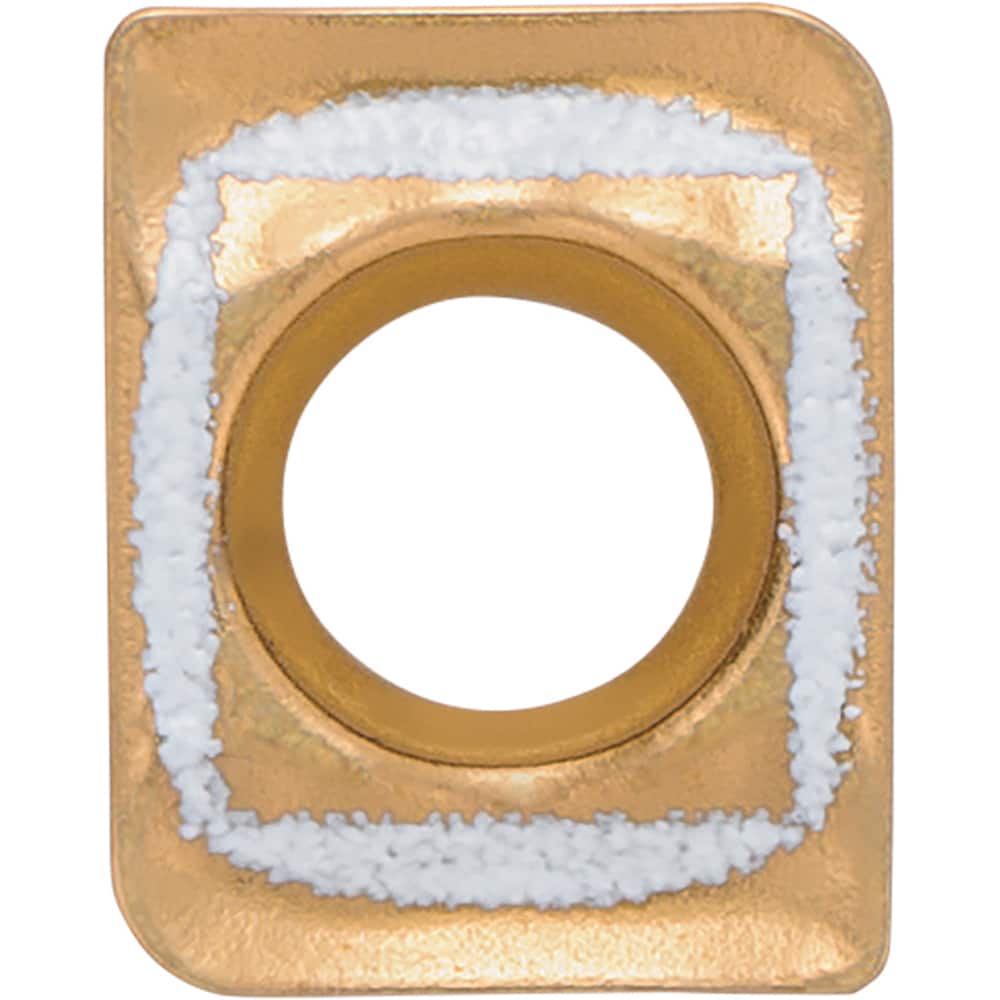

Kyocera - LCMT030203-GH-E CA415D Carbide Indexable Drill Insert
Item #: 28487411
Brand: Kyocera
Model #: 8864832
Product Specifications
| Insert Style | LCMT |
| Insert Size | 030203 |
| Material | Carbide |
| Manufacturer's Grade | CA415D |
| Length (mm) | 5.54 |
| Width (mm) | 4.40 |
| Thickness (mm) | 2.0000 |
| Corner Radius (mm) | 0.30 |
| Shape | Irregular |
| Primary Workpiece Material | K |
| Hole Diameter (mm) | 2.3000 |
| Relief Angle | 7.000 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GH-E |
| Manufacturers Catalog Number | LCMT030203GHECA415D |
| Series | DRV Magic Drill |
