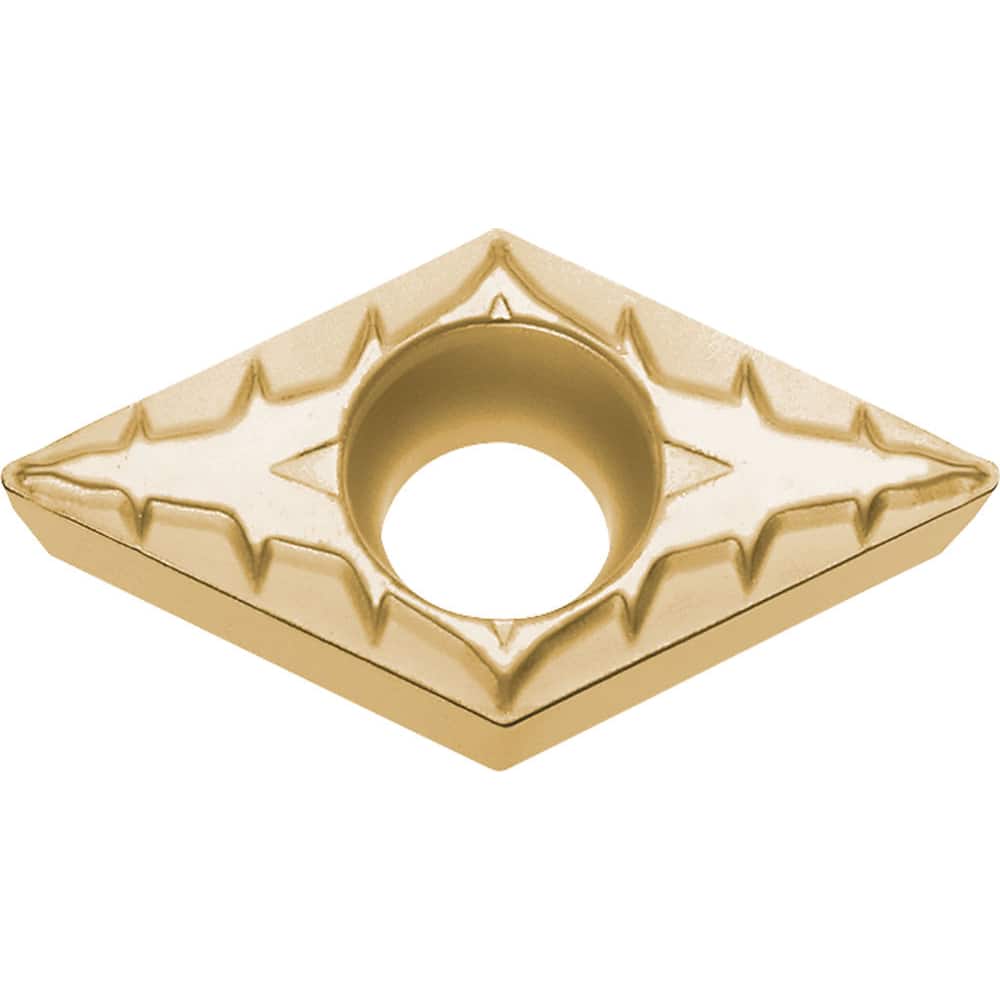

Kyocera - DCMT11T304XP CCX Cermet Turning Insert
Item #: 28471654
Brand: Kyocera
Model #: 8864247
Product Specifications
| Insert Style | DCMT |
| Insert Size | 3251 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/Tin |
| Chip Breaker | XP |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCMT11T304XP |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT3251XPCCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Shape | Diamond |
