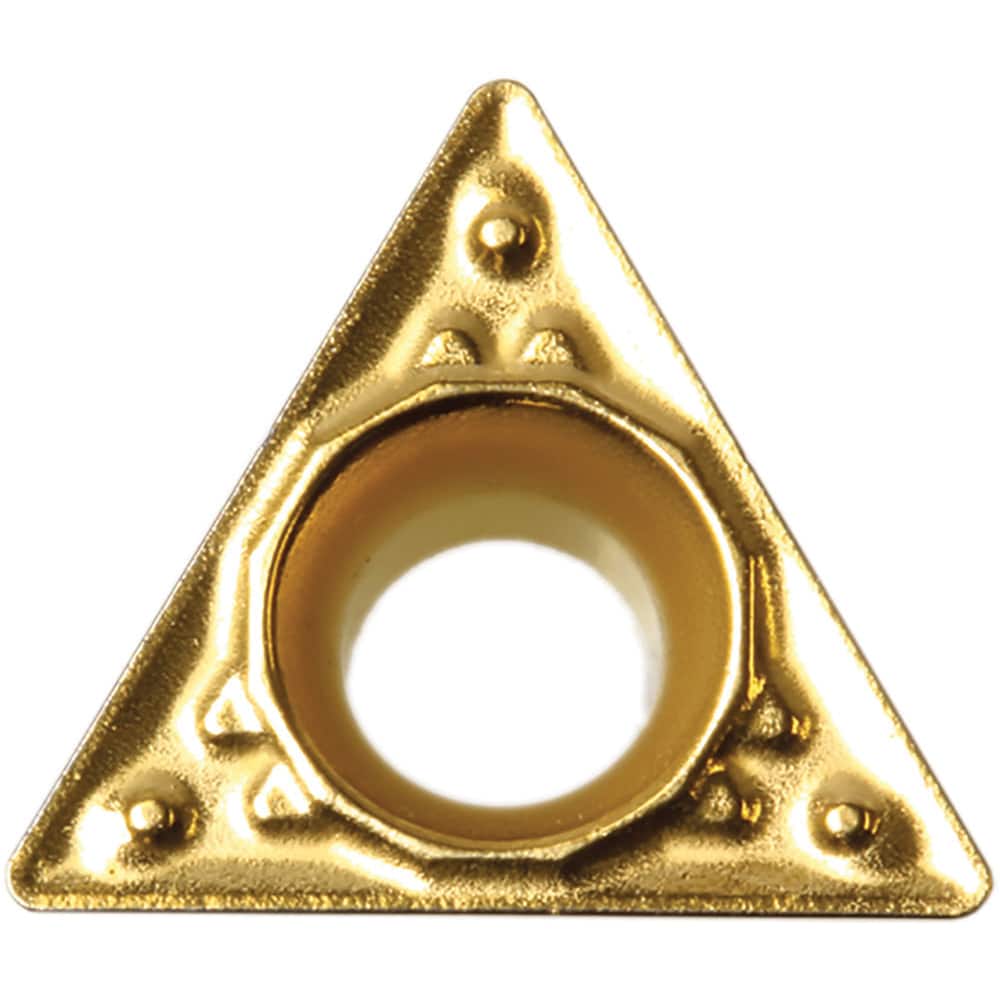

Kyocera - TPMT160304HQ CCX Cermet Turning Insert
Item #: 28460012
Brand: Kyocera
Model #: 8864281
Product Specifications
| Insert Style | TPMT |
| Insert Size | 321 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/Tin |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | TPMT160304HQ |
| Rake | Positive |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TPMT321HQCCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Shape | Triangle |
