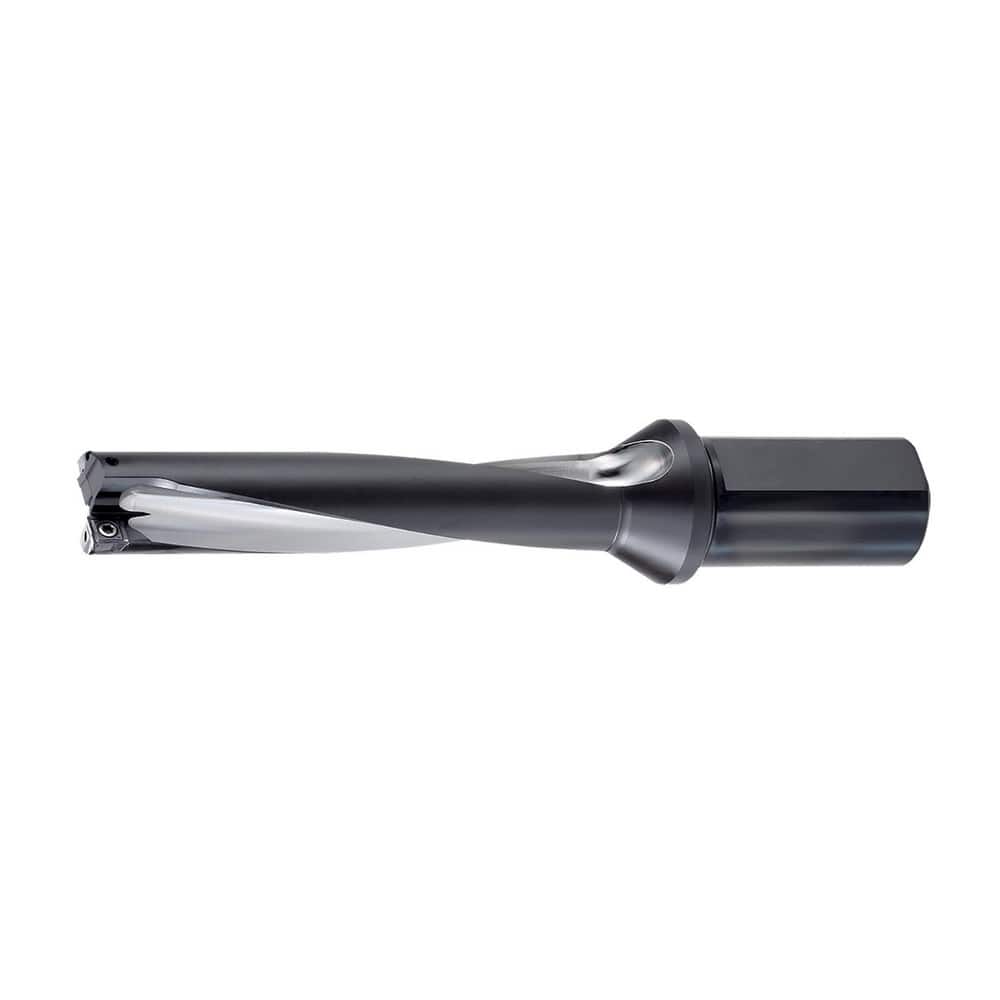

Indexable Insert Drills; Drill Style: P4D; Maximum Drill Diameter (Decimal Inch): 1.0313; Maximum Drill Depth (Inch): 4-1/8; Maximum Drill Depth (Decimal Inch): 4.1250; Shank Type: Flatted; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decimal Inch): 1.25
Item #: 26309435
Brand: OSG
Model #: 52504045
Product Specifications
| Drill Style | P4D |
| Maximum Drill Diameter (Decimal Inch) | 1.0313 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1250 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 08 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.3900 |
| Overall Length (mm) | 7.39 |
| Series | 52504 |
| Shank Length (Decimal Inch) | 2.3620 |
| Coolant Through | Yes |
