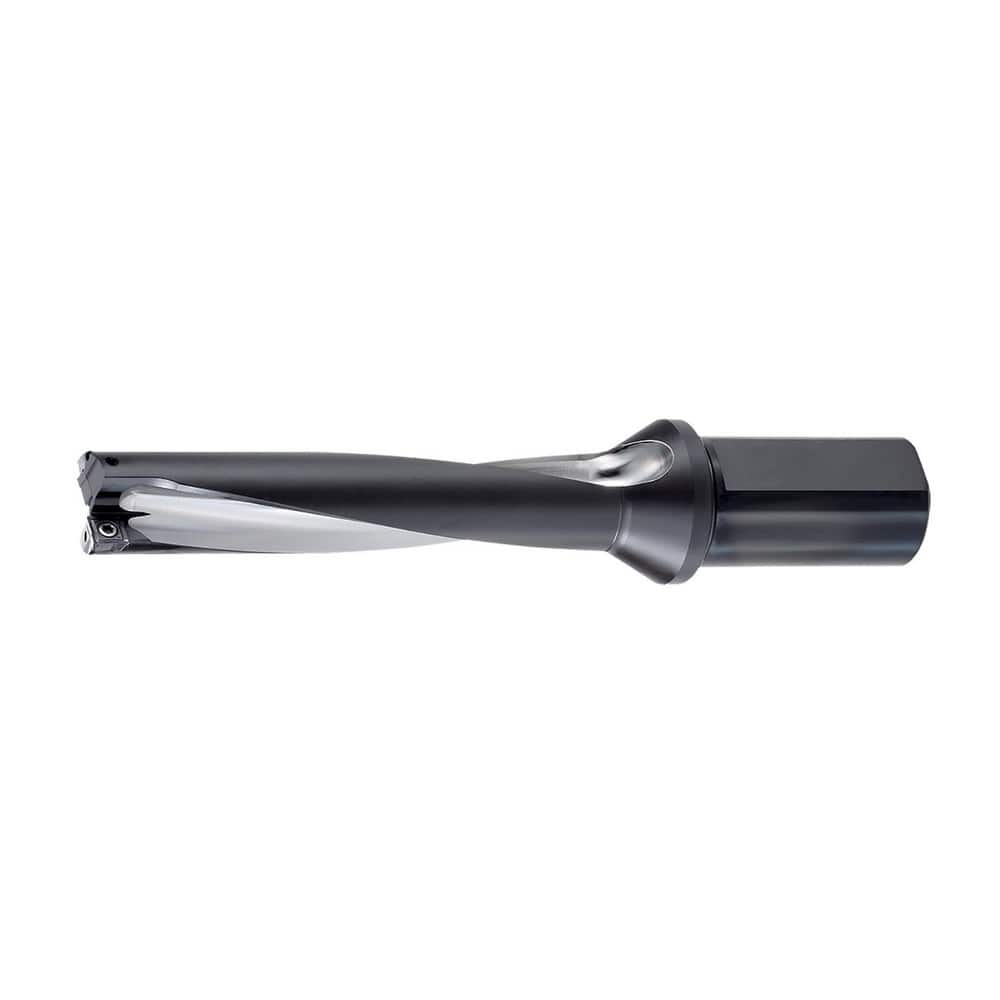

Indexable Insert Drills; Drill Style: P2D; Maximum Drill Diameter (Decimal Inch): 1.7813; Maximum Drill Depth (Decimal Inch): 3.5630; Shank Type: Flatted; Shank Diameter (Inch): 1-1/2; Shank Diameter (Decimal Inch): 1.5000; Number of Drill Inserts: 2
Item #: 26309062
Brand: OSG
Model #: 52502057
Product Specifications
| Drill Style | P2D |
| Maximum Drill Diameter (Decimal Inch) | 1.7813 |
| Maximum Drill Depth (Decimal Inch) | 3.5630 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 13 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.2200 |
| Overall Length (mm) | 7.22 |
| Series | 52502 |
| Shank Length (Decimal Inch) | 2.7560 |
| Coolant Through | Yes |
