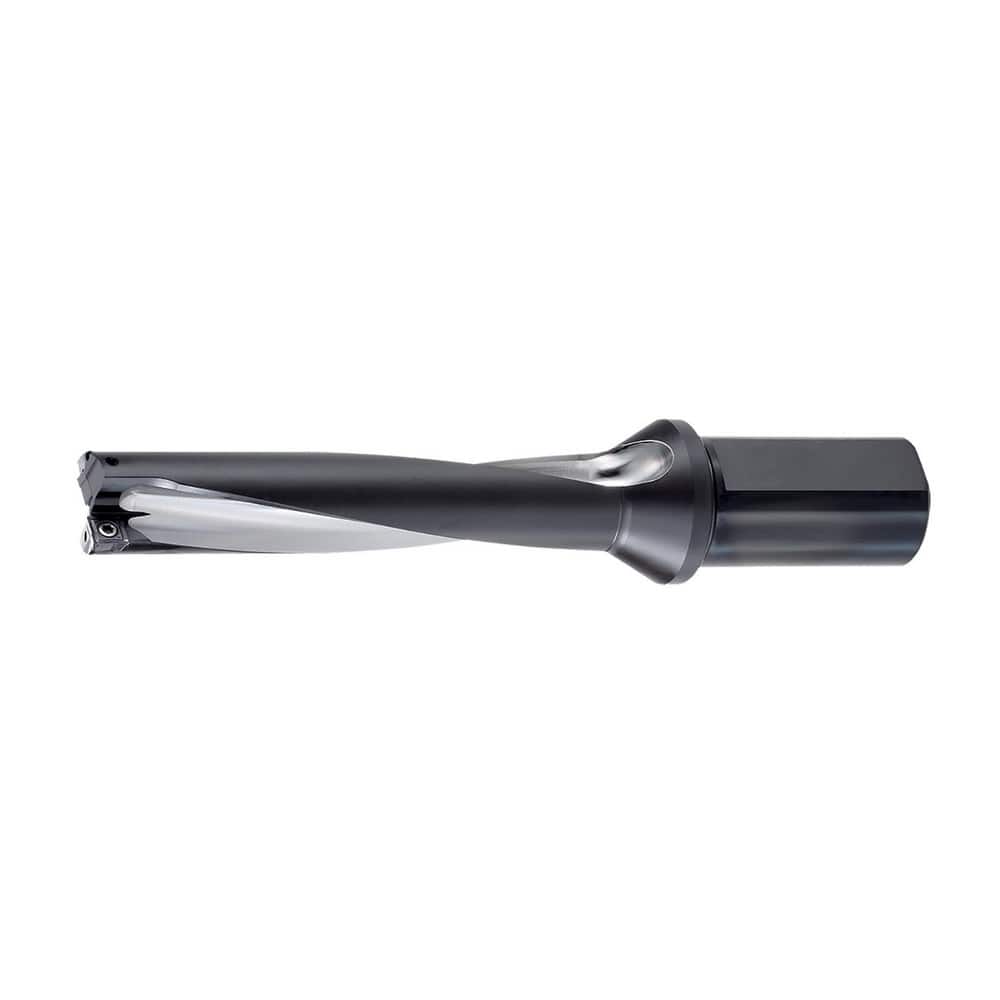

Indexable Insert Drills; Drill Style: P2D; Maximum Drill Diameter (Inch): 5/8; Maximum Drill Diameter (Decimal Inch): 1.6250; Maximum Drill Depth (Inch): 3-1/4; Maximum Drill Depth (Decimal Inch): 3.2500; Shank Type: Flatted; Shank Diameter (Inch): 1-1/2;
Item #: 26309047
Brand: OSG
Model #: 52502055
Product Specifications
| Drill Style | P2D |
| Maximum Drill Diameter (Inch) | 5/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.6250 |
| Maximum Drill Depth (Inch) | 3-1/4 |
| Maximum Drill Depth (Decimal Inch) | 3.2500 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 12 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.9100 |
| Overall Length (mm) | 6.91 |
| Series | 52502 |
| Shank Length (Decimal Inch) | 2.7560 |
| Coolant Through | Yes |
