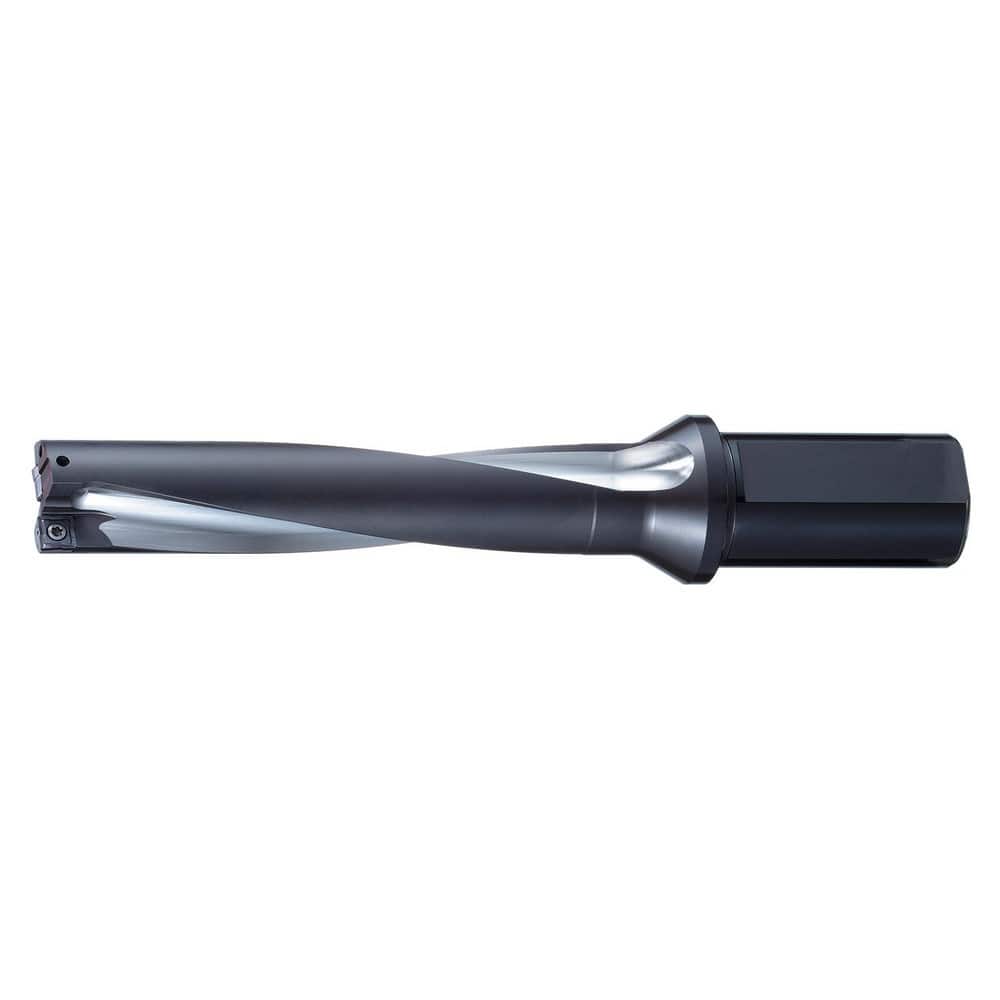

Indexable Insert Drills; Drill Style: P5D; Maximum Drill Diameter (mm): 31.00; Maximum Drill Depth (mm): 155.00; Shank Type: Flatted; Shank Diameter (Inch): 40; Shank Diameter (mm): 40.00; Number of Drill Inserts: 2; Cutting Direction: Right Hand; Maximum
Item #: 26308478
Brand: OSG
Model #: 7802796
Product Specifications
| Drill Style | P5D |
| Maximum Drill Diameter (mm) | 31.00 |
| Maximum Drill Depth (mm) | 155.00 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 40 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 248.00 |
| Series | 78027 |
| Shank Length (mm) | 70.00 |
| Coolant Through | Yes |
