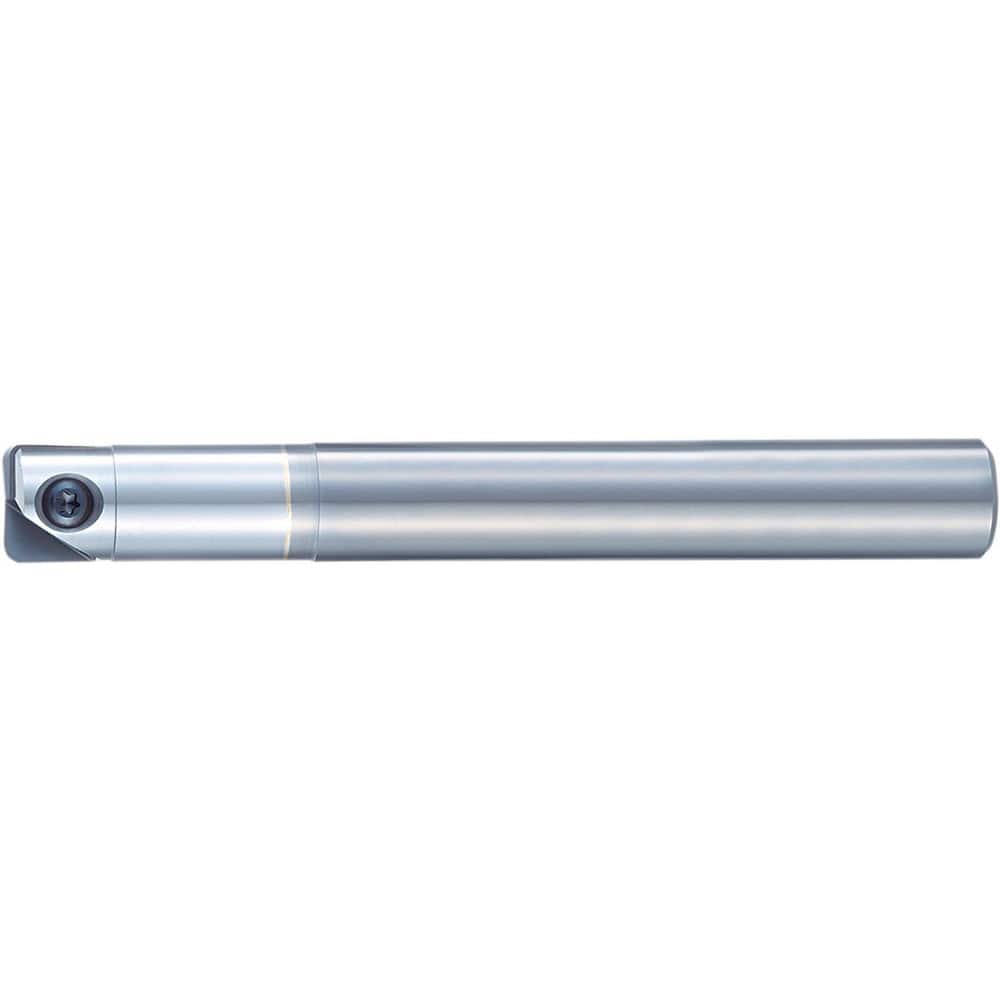

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 1-1/4″ Straight Shank Uses 1 PFR Inserts, 5″ Max Depth, 8-1/2″ OAL
Item #: 26304188
Brand: OSG
Model #: 52200031
Product Specifications
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 5.0000 |
| Toolholder Style | PFR |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 1.25 |
| Compatible Insert Style | PFR |
| Compatible Insert Size Code | 1250 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 1 |
| Overall Length (Decimal Inch) | 8.5000 |
| Overall Length (Inch) | 8-1/2 |
| Overall Length (mm) | 8.50 |
| Series | 52200 |
| Coolant Through | No |
