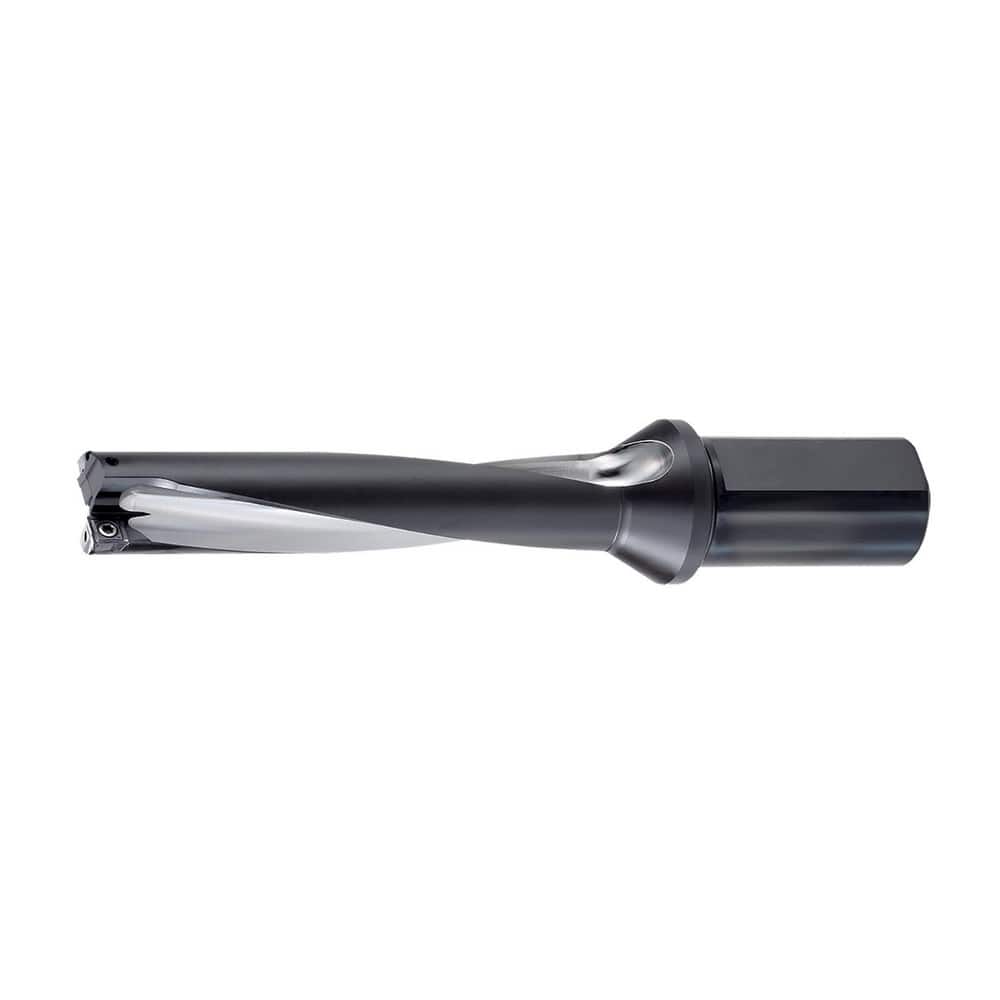

Indexable Insert Drills; Drill Style: P4D; Maximum Drill Diameter (Decimal Inch): 1.5313; Maximum Drill Depth (Inch): 6-1/8; Maximum Drill Depth (Decimal Inch): 6.1250; Shank Type: Flatted; Shank Diameter (Inch): 1-1/2; Shank Diameter (Decimal Inch): 1.50
Item #: 26303537
Brand: OSG
Model #: 52504053
Product Specifications
| Drill Style | P4D |
| Maximum Drill Diameter (Decimal Inch) | 1.5313 |
| Maximum Drill Depth (Inch) | 6-1/8 |
| Maximum Drill Depth (Decimal Inch) | 6.1250 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 10 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.7900 |
| Overall Length (mm) | 9.79 |
| Series | 52504 |
| Shank Length (Decimal Inch) | 2.7560 |
| Coolant Through | Yes |
