Turning Insert: SCGW32.51FN_A4 CTDPD20, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0157″ Corner Radius, 90.0 ° N/A Square, Series SCGW
Item #: 26295162
Brand: Ceratizit
Model #: 7118210001

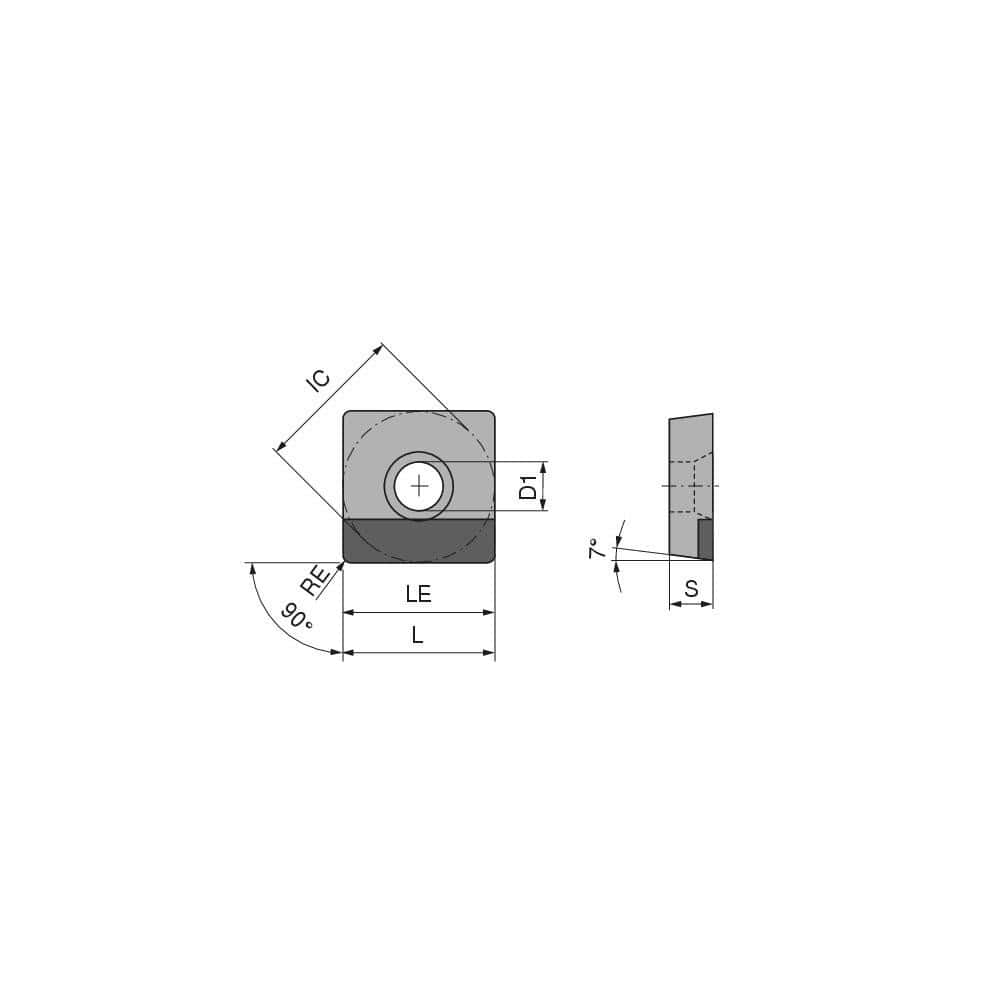

Product Specifications
| Insert Style | SCGW |
| Insert Shape Code | S |
| Insert Size Code | 32.51 |
| Insert Shape | Square |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDPD20 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1732 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90.0 |
| Relief Angle | 7 |
| Series | SCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | SCGW32.51FN_A4CTDPD20 |
| Iso Code | SCGW 09T304FN_A4 CTDPD20 |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
