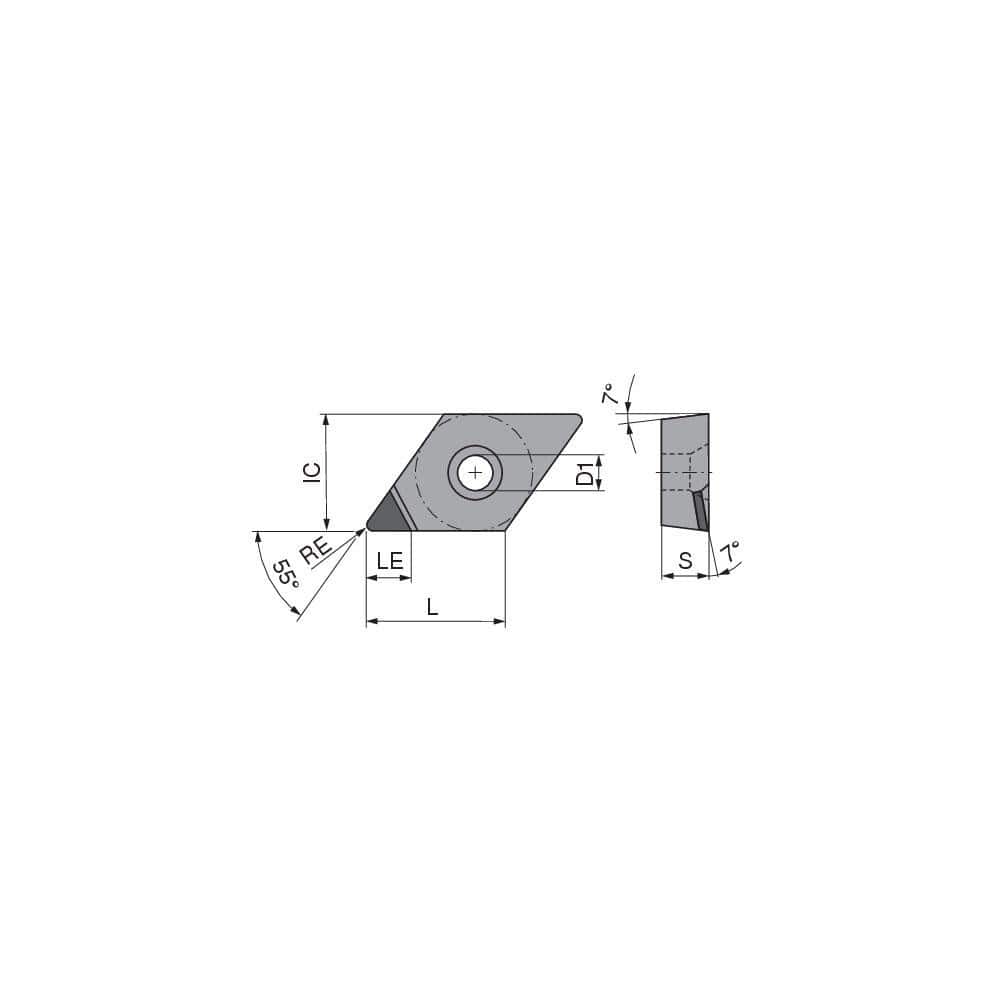

Turning Insert: DCGT21.50FN_A4 CTDPS30, Polycrystalline Diamond Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0039″ Corner Radius, 55.0 ° N/A Diamond, Series DCGT
Item #: 26295139
Brand: Ceratizit
Model #: 7117320001
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 21.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDPS30 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | DCGT21.50FN_A4CTDPS30 |
| Iso Code | DCGT 070201FN_A4 CTDPS30 |
| Chip Breaker | T |
| Coating/Finish | Uncoated |
