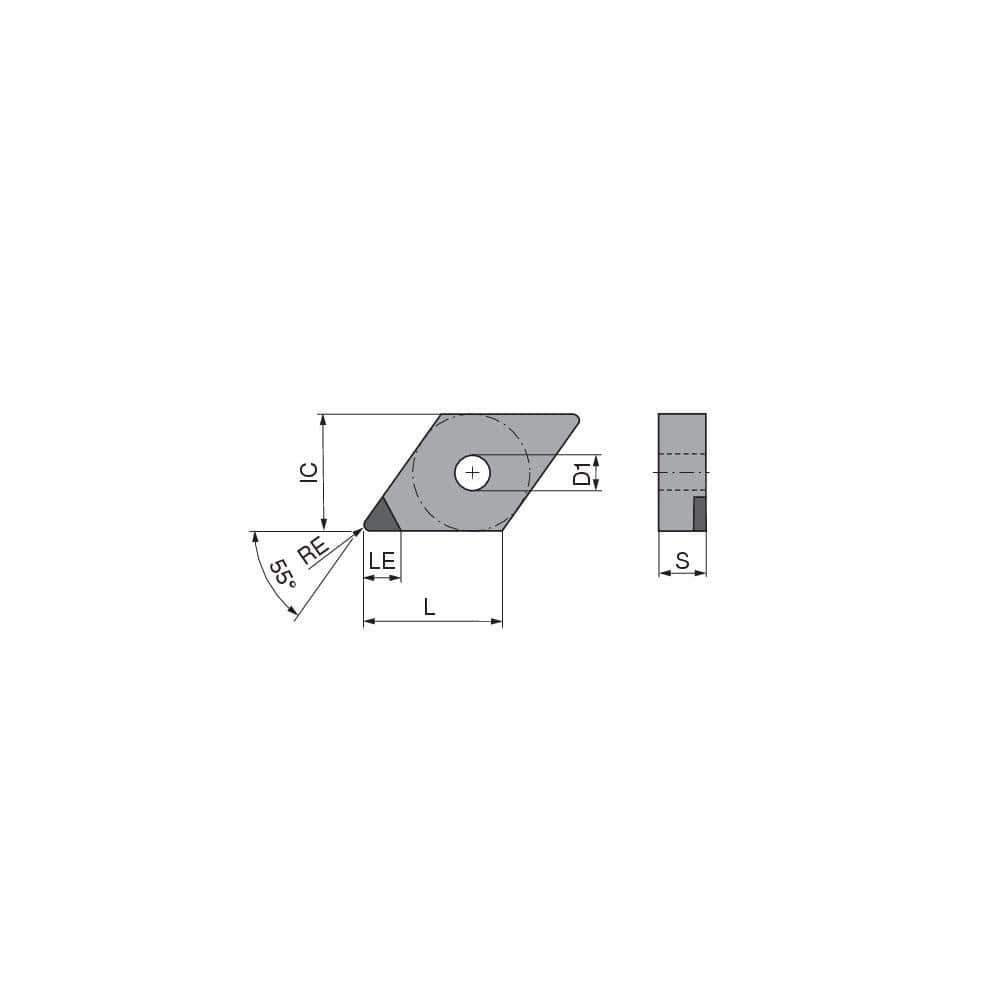

Turning Insert: DNGA442TN012EA3, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DNGA
Item #: 26294090
Brand: Ceratizit
Model #: 7141050700
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 442 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40U |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | DNGA442TN012E_A3CTBH40U |
| Iso Code | DNGA 150608TN-012E_A3 CTBH40U |
| Chip Breaker | A |
| Coating/Finish | TiN |
