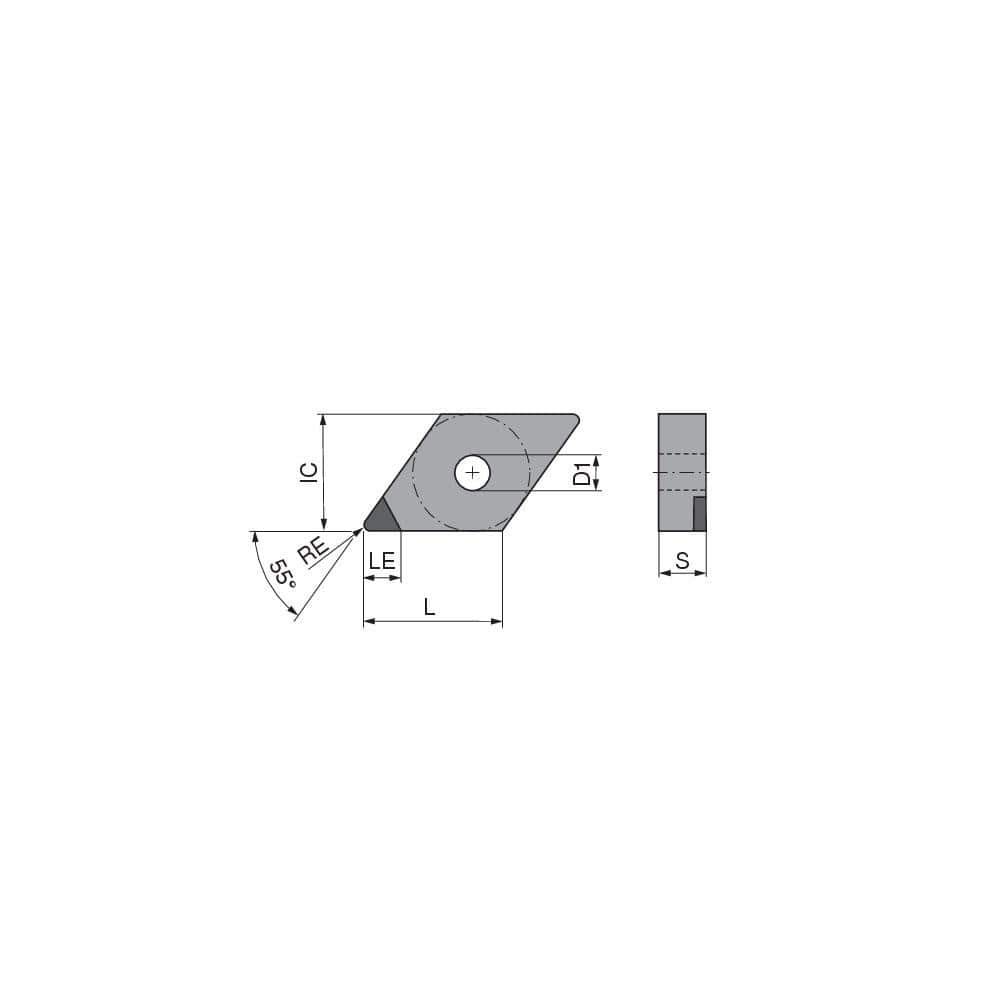

Turning Insert: DNGA441TN012CA4, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 55.0 ° N/A Diamond, Series DNGA
Item #: 26293316
Brand: Ceratizit
Model #: 7141020000
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 441 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS20U |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | DNGA441TN012C_A4CTBS20U |
| Iso Code | DNGA 150604TN-012C_A4 CTBS20U |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
