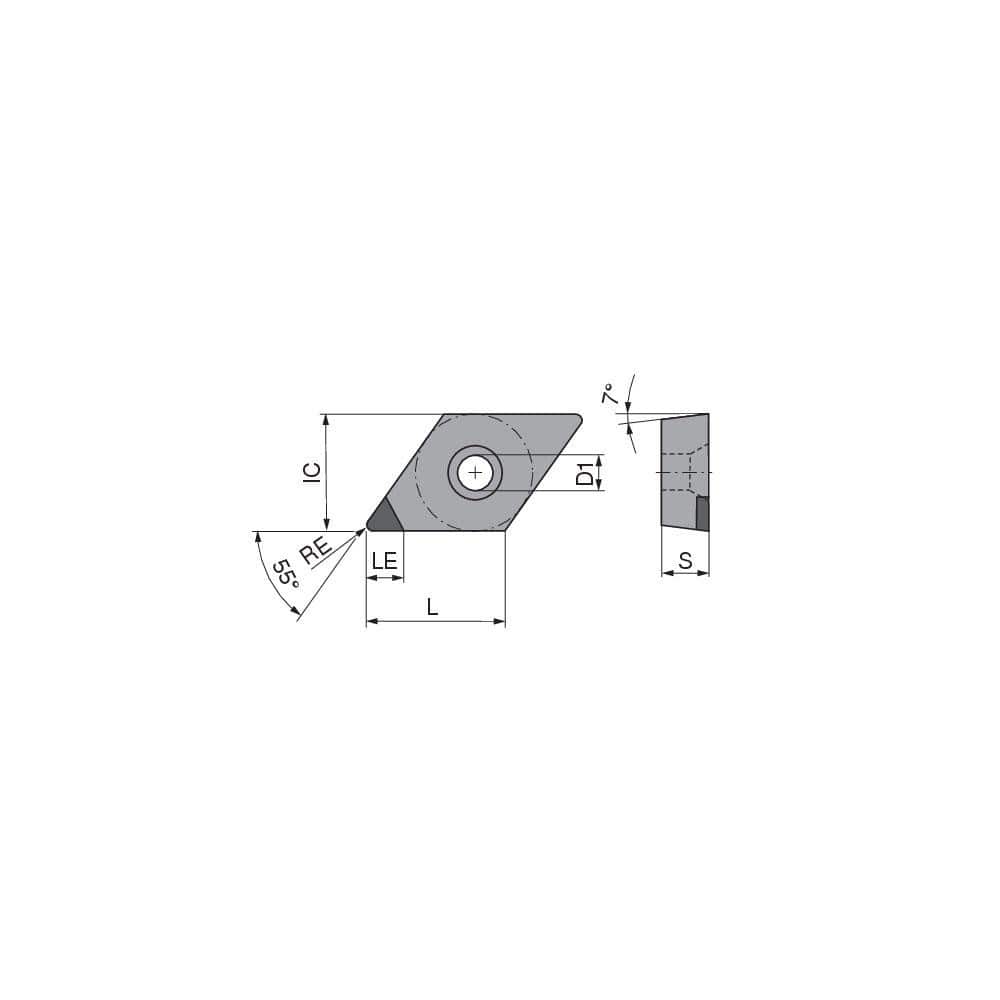

Turning Insert: DCGW21.5.5FNA4 CTBS20U, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW
Item #: 26288126
Brand: Ceratizit
Model #: 7142220000
Product Specifications
| Insert Style | DCGW |
| Insert Shape Code | D |
| Insert Size Code | 21.5.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS20U |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1535 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | DCGW21.5.5FN_A4CTBS20U |
| Iso Code | DCGW 070202FN_A4 CTBS20U |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
