Turning Insert:  DCGW32.53FN_A4 CTDPS30,  Polycrystalline Diamond Uncoated Finish,  Neutral,  0.0472″ Corner Radius,  55.0 &deg N/A Diamond,  Series  DCGW

Turning Insert: DCGW32.53FN_A4 CTDPS30, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0472″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW


Item #: 26287037
Brand: Ceratizit
Model #: 7117720801

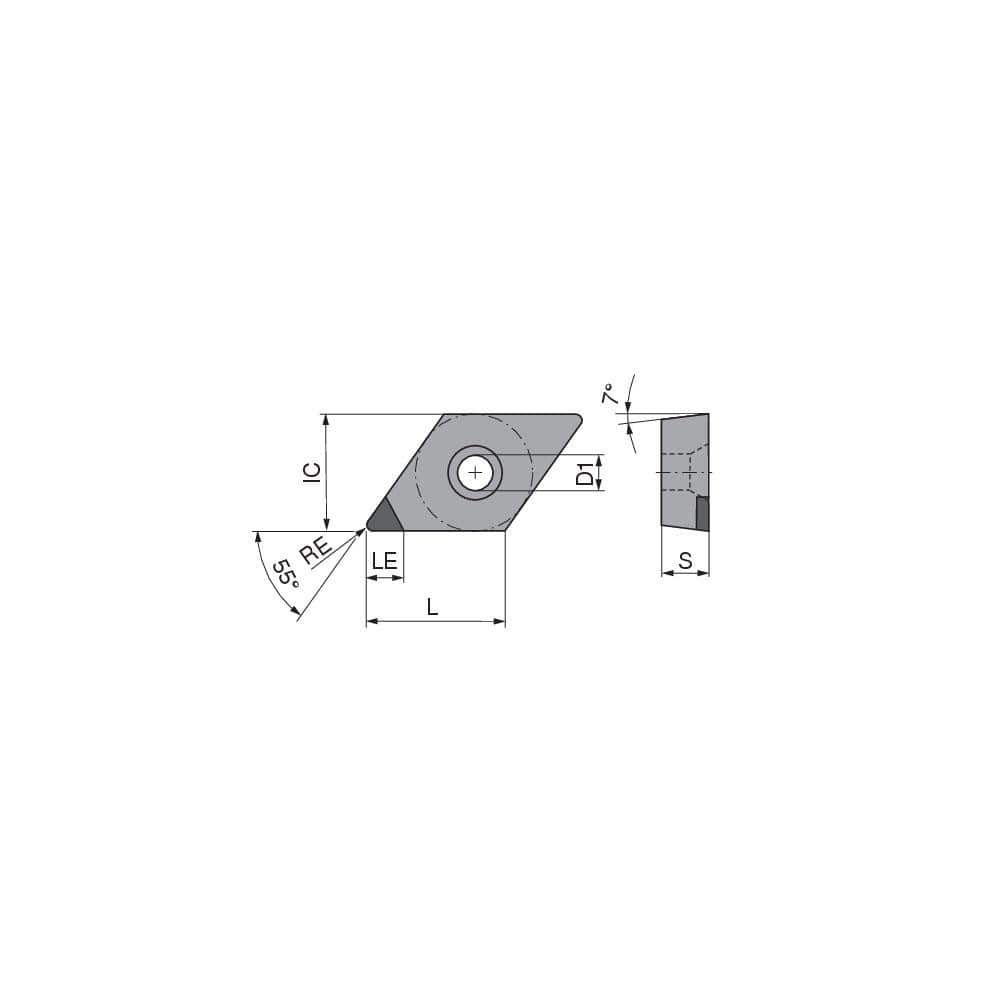

Product Specifications

Insert Style DCGW
Insert Shape Code D
Insert Size Code 32.53
Insert Shape Diamond
Clearance Code C
Tolerance Code G
Insert Material Polycrystalline Diamond
Manufacturer Grade CTDPS30
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.1417
Inscribed Circle (Decimal Inch) 0.3748
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Corner Radius (Decimal Inch) 0.0472
Included Angle 55.0
Relief Angle 7
Series DCGW
Coating Process Uncoated
Rake Positive
Wiper Edge No
Number Of Cutting Edges 1
Primary Workpiece Material Non-Ferrous Metal; Universal
Primary Workpiece Material Code N; O
Ansi Code DCGW32.53FN_A4CTDPS30
Iso Code DCGW 11T312FN_A4 CTDPS30
Chip Breaker W
Coating/Finish Uncoated
$68.42
