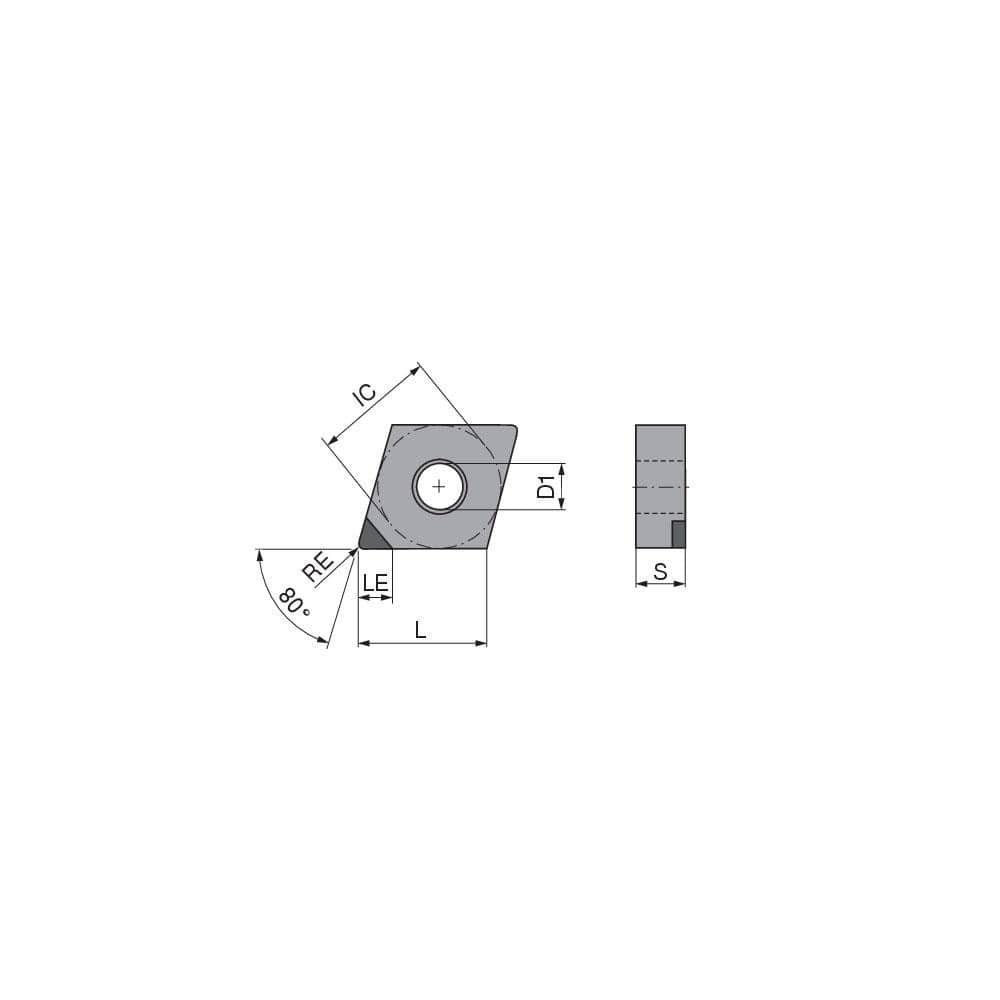

Turning Insert: CNGA4305TN012DA3, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0079″ Corner Radius, 80.0 ° N/A Diamond, Series CNGA
Item #: 26284166
Brand: Ceratizit
Model #: 7140610100
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 43.5 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS10U |
| Hole Diameter (Decimal Inch) | 0.2020 |
| Maximum Depth of Cut (Decimal Inch) | 0.1339 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | CNGA430.5TN012D_A3CTBS10U |
| Iso Code | CNGA 120402TN-012D_A3 CTBS10U |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
