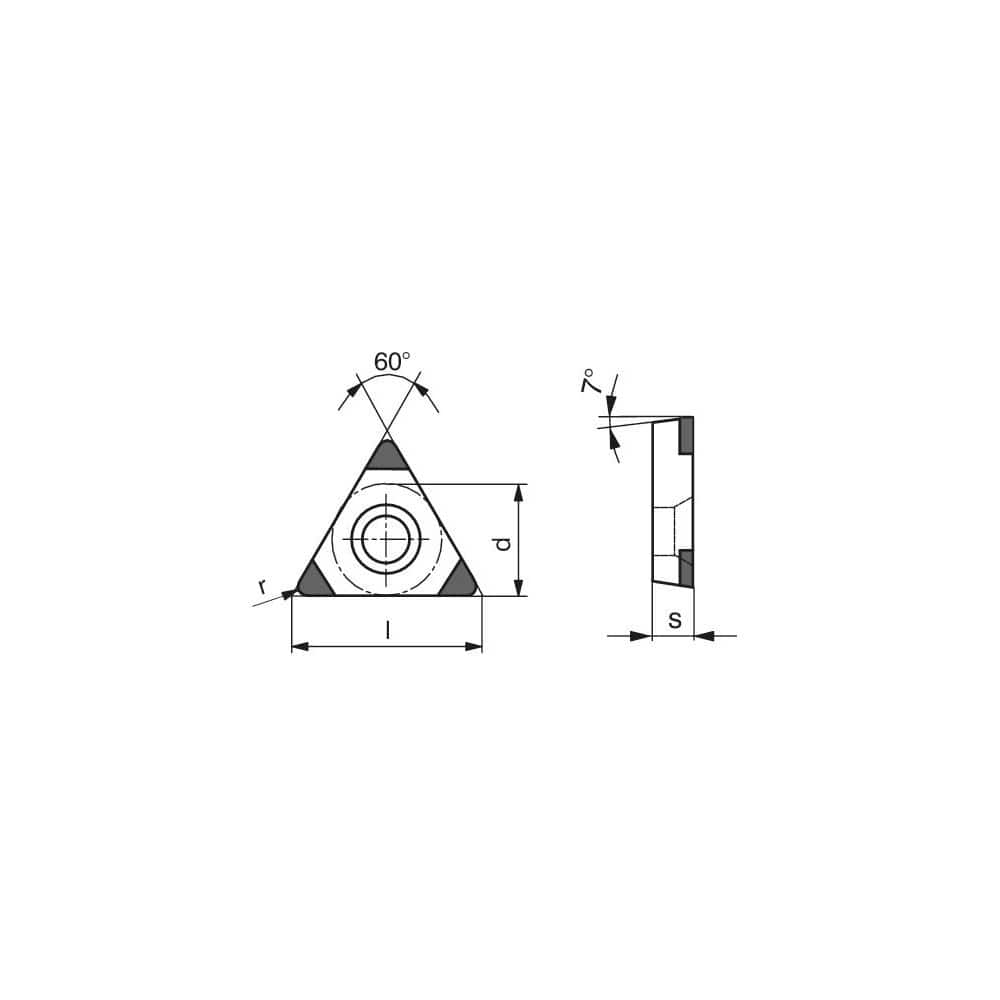

Turning Insert: PTCGW18155SN011CC3, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0079″ Corner Radius, 60.0 ° N/A Triangle, Series TCGW
Item #: 26283382
Brand: Ceratizit
Model #: 7102930214
Product Specifications
| Insert Style | TCGW |
| Insert Shape Code | T |
| Insert Size Code | 1.81.5.5 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH15U |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (Decimal Inch) | 0.1024 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | PTCGW1.81.5.5SN011C_C3CTBH15U |
| Iso Code | TCGW 090202SN-011C_C3 CTBH15U |
| Chip Breaker | W |
| Coating/Finish | TiN |
