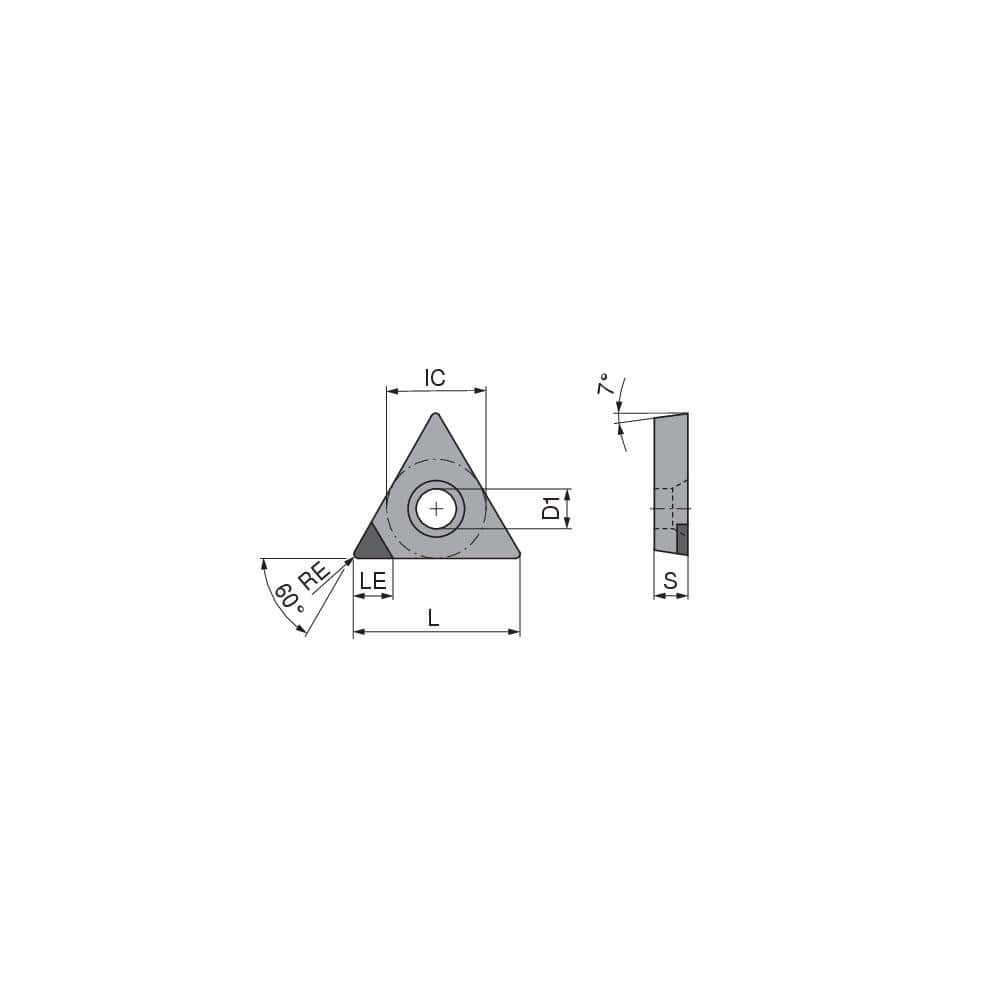

Turning Insert: TCGW18151TN012CA4, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 0.0157″ Corner Radius, 60.0 ° N/A Triangle, Series TCGW
Item #: 26282228
Brand: Ceratizit
Model #: 7142720000
Product Specifications
| Insert Style | TCGW |
| Insert Shape Code | T |
| Insert Size Code | 1.81.51 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS20U |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | TCGW1.81.51TN012C_A4CTBS20U |
| Iso Code | TCGW 090204TN-012C_A4 CTBS20U |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
