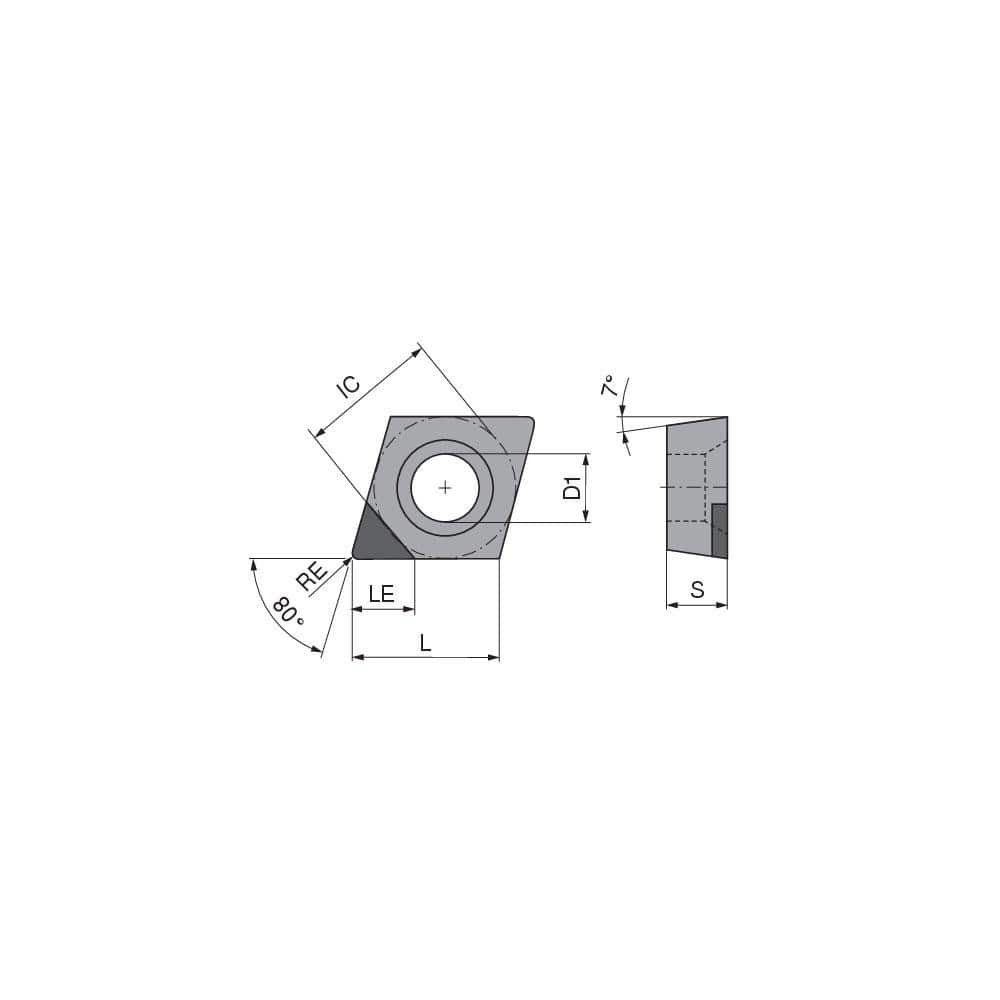

Turning Insert: CCGW432TN012CA3, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Diamond, Series CCGW
Item #: 26279737
Brand: Ceratizit
Model #: 7141820900
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS20U |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | CCGW432TN012C_A3CTBS20U |
| Iso Code | CCGW 120408TN-012C_A3 CTBS20U |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
