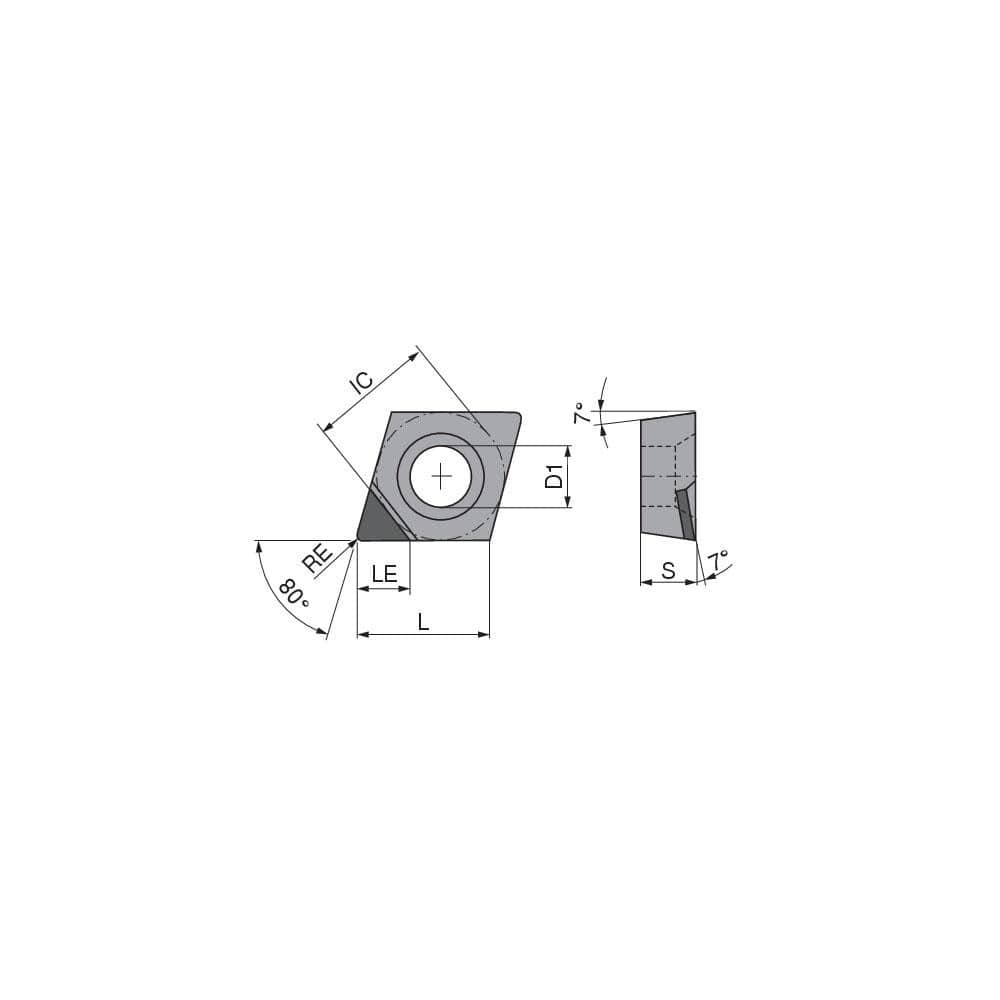

Turning Insert: CCGT2151FNA3QCB2, Polycrystalline Diamond Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 80.0 ° N/A Diamond, Series CCGT
Item #: 26243691
Brand: Ceratizit
Model #: 71306204
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 21.51 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDPS30 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | CCGT21.51FN_A3QCB2CTDPS30 |
| Iso Code | CCGT 060204FN_A3-Q-CB2 CTDPS30 |
| Chip Breaker | QCB |
| Coating/Finish | Uncoated |
