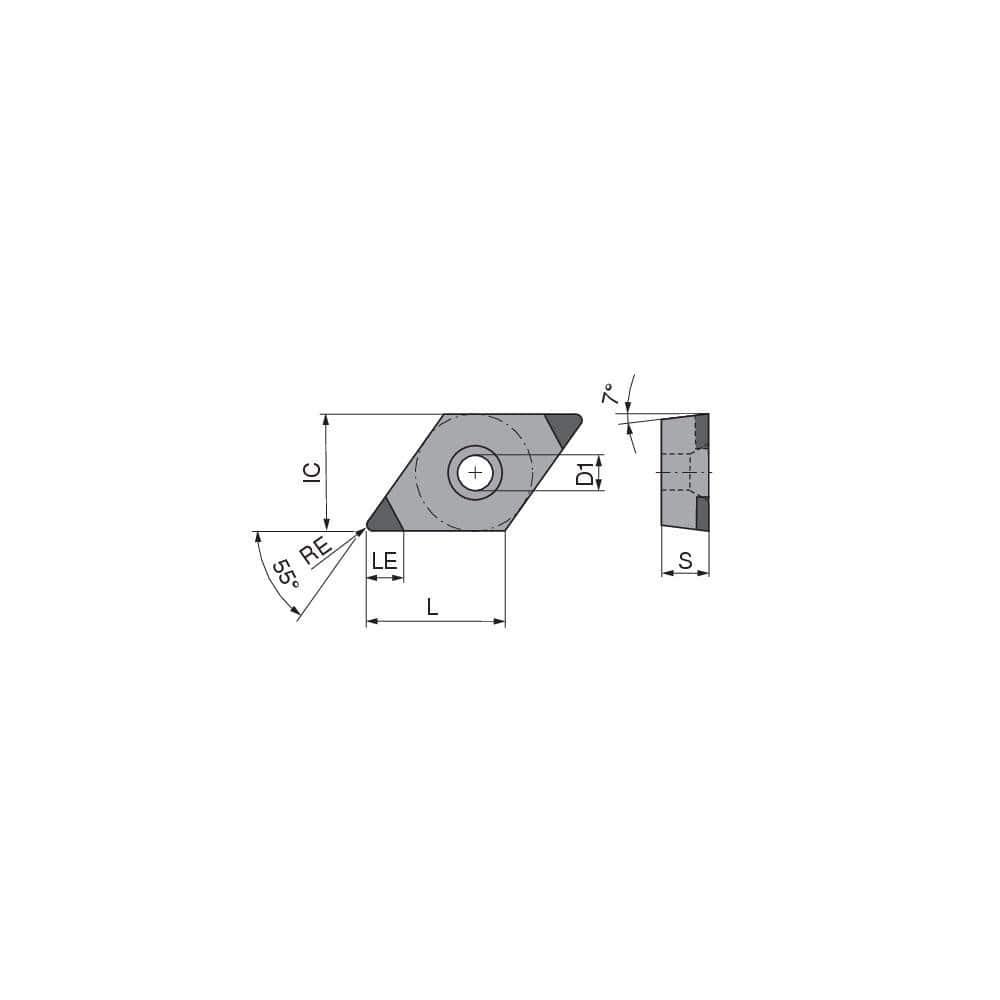

Turning Insert: DCGW3252TN012DB3, Polycrystalline Cubic Boron Nitride TiCN Finish, Neutral, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW
Item #: 26234070
Brand: Ceratizit
Model #: 71131504
Product Specifications
| Insert Style | DCGW |
| Insert Shape Code | D |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH20U |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGW |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | DCGW32.52TN012D_B3CTBH20U |
| Iso Code | DCGW 11T308TN-012D_B3 CTBH20U |
| Chip Breaker | W |
| Coating/Finish | TiCN |
