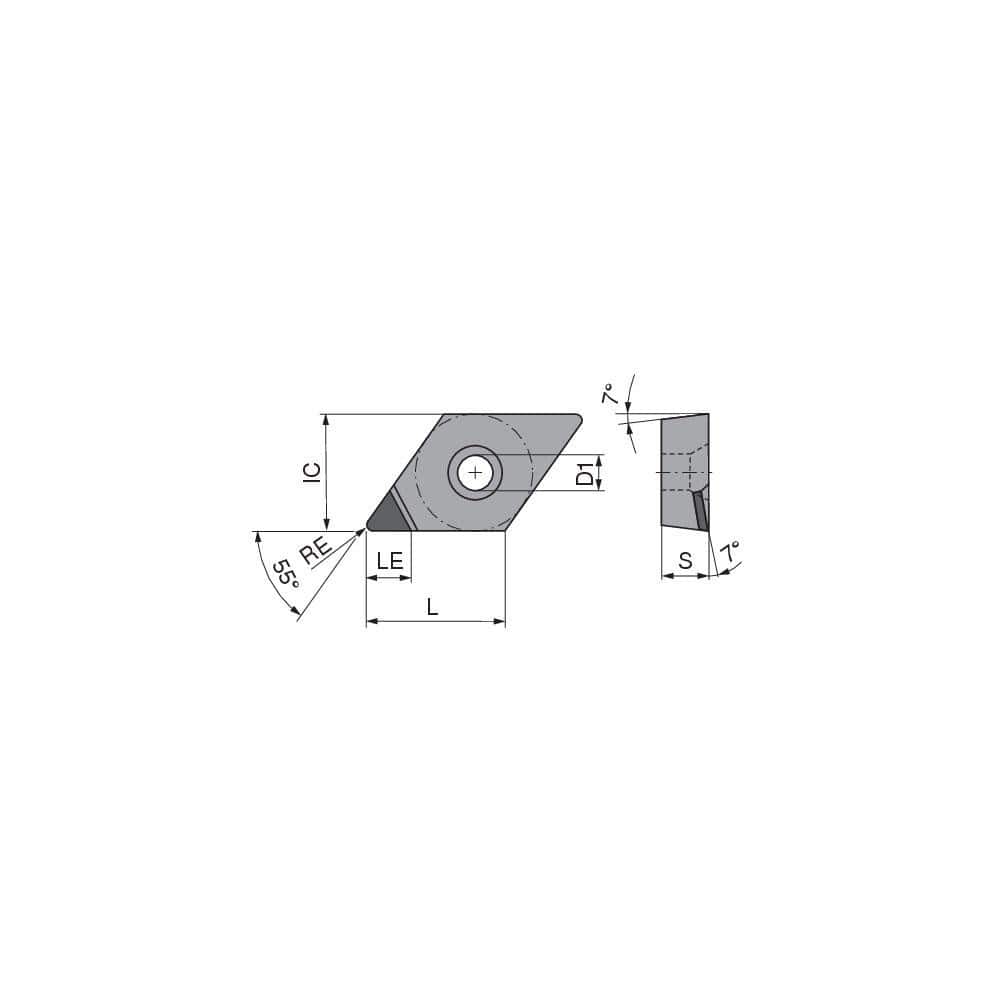

Turning Insert: DCGT32.52FN_A3 CTBH40U, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DCGT
Item #: 26231290
Brand: Ceratizit
Model #: 71134810
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40U |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGT |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | DCGT32.52FN_A3CTBH40U |
| Iso Code | DCGT 11T308FN_A3 CTBH40U |
| Chip Breaker | T |
| Coating/Finish | TiN |
