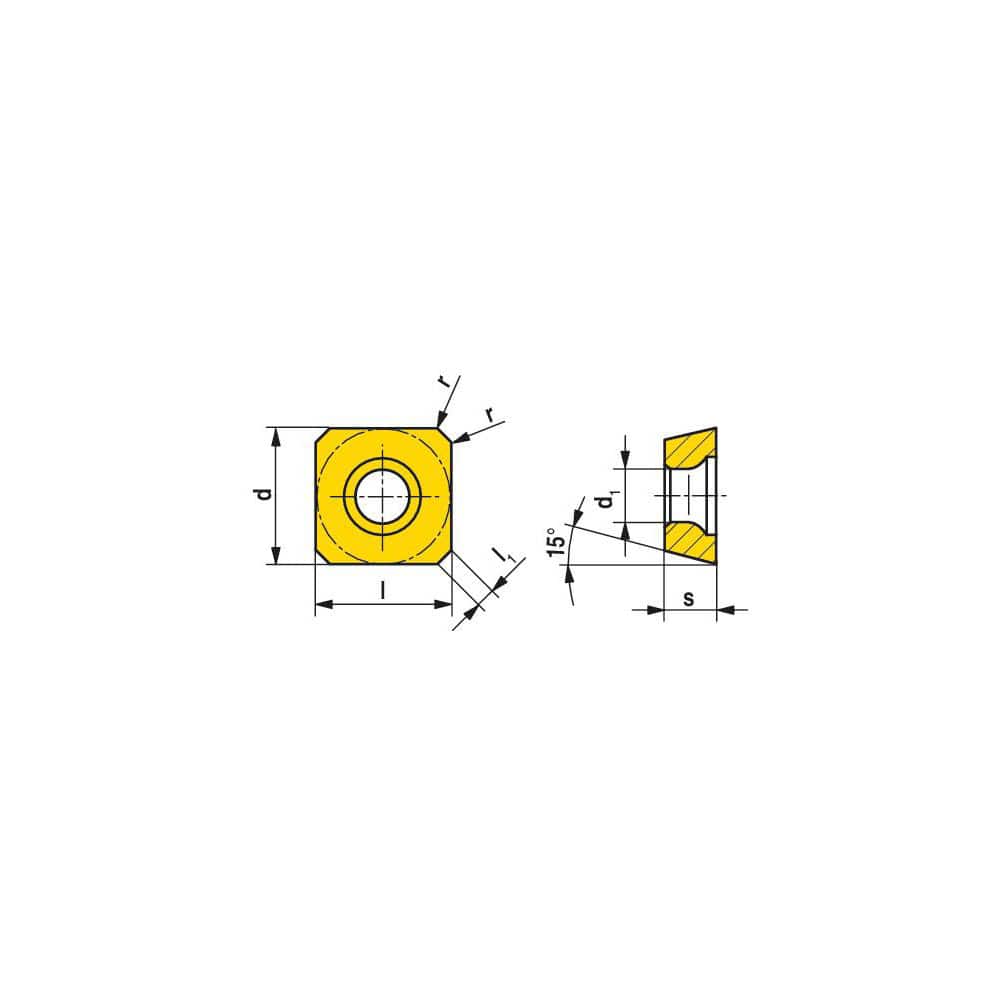

Milling Insert: SDHW 1204AEEN H216T, H216T, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26222182
Brand: Ceratizit
Model #: 50428600
Product Specifications
| Insert Style | SDHW |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | H216T |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | SDHW |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | SDHW 1204AEEN H216T |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Included Angle Degree | 45 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
