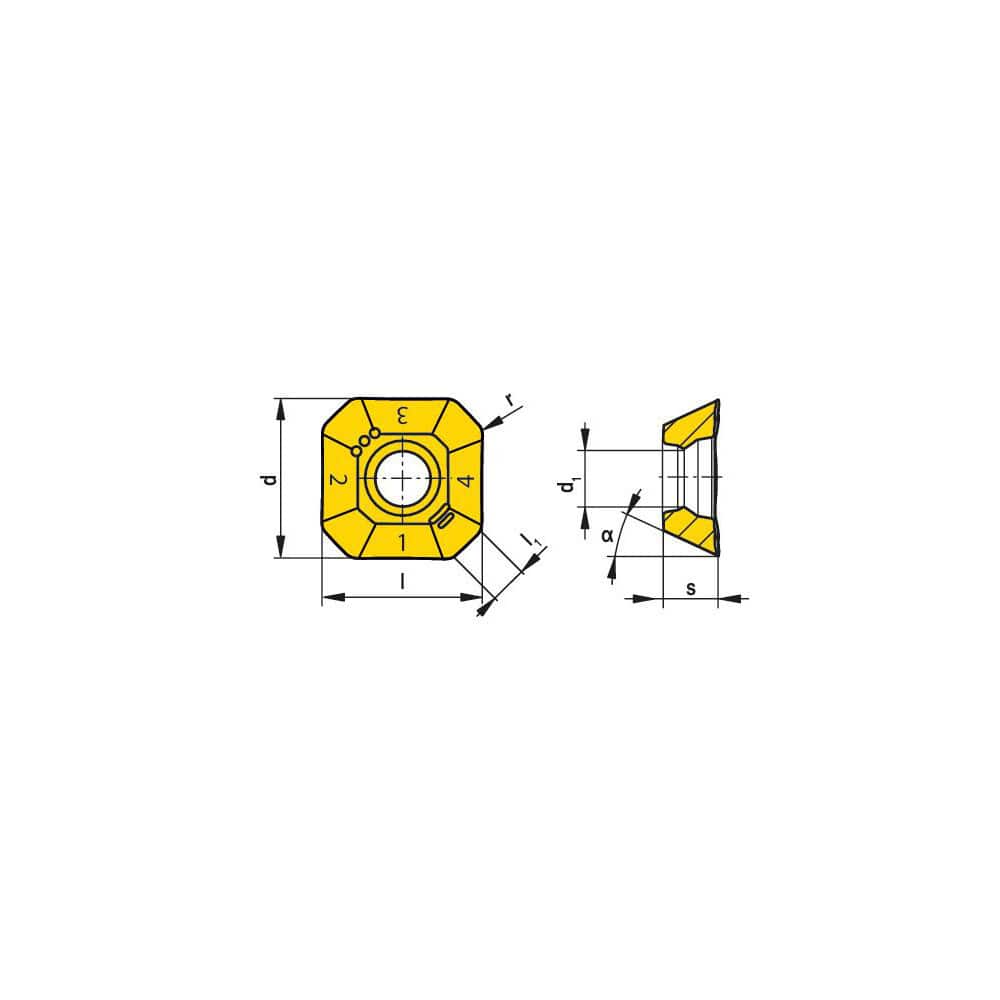

Milling Insert: SFHT 1204AFFR-F10 CTWN215, CTWN215, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26222018
Brand: Ceratizit
Model #: 5112337000
Product Specifications
| Insert Style | SFHT |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTWN215 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 25.00 |
| Series | SFHT |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Non-ISO |
| Secondary Workpiece Material Code | K; O |
| Iso Code | SFHT 1204AFFR-F10 CTWN215 |
| Chip Breaker | F10 |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
