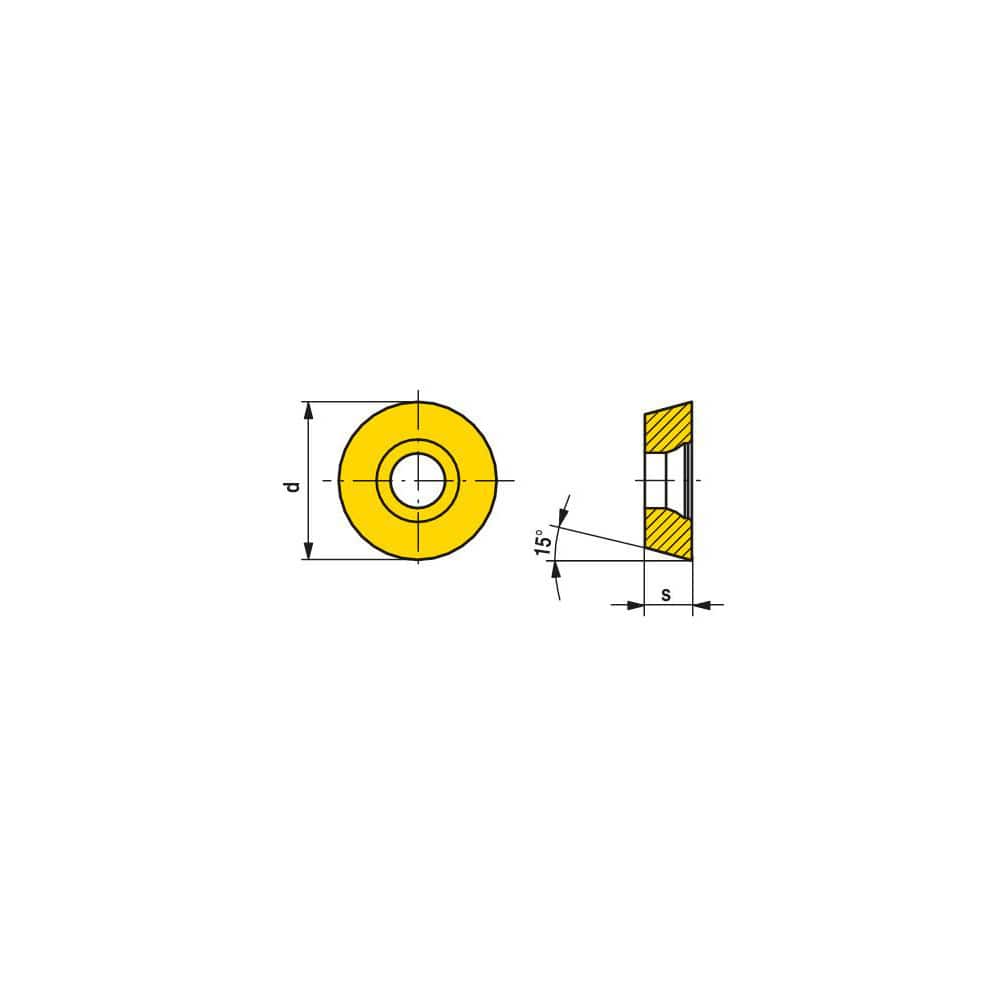

Milling Insert: RDMX 12T3MOT WAN1240, WAN1240, Solid Carbide N/A Finish,
Item #: 26221945
Brand: Ceratizit
Model #: 56309741
Product Specifications
| Insert Style | RDMX |
| Insert Size Code | 12T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WAN1240 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDMX |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | RDMX 12T3MOT WAN1240 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
