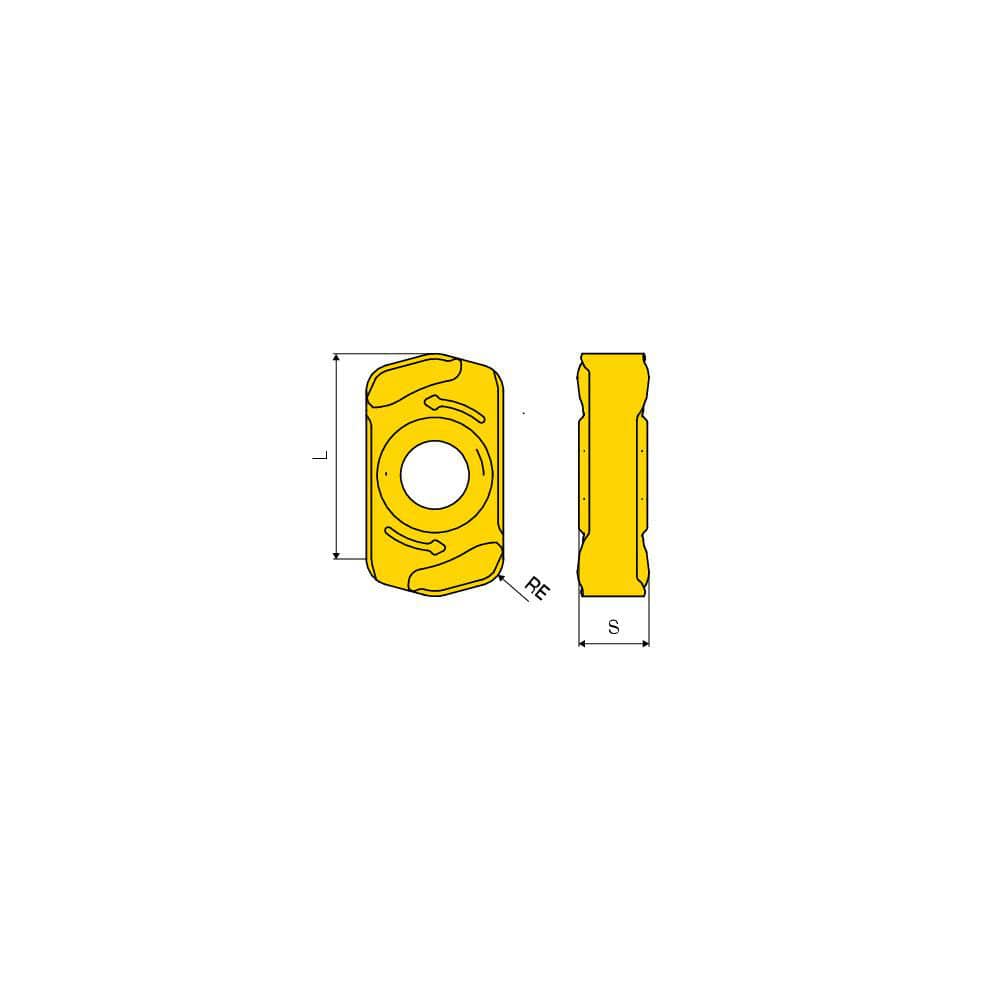

Milling Insert: LNKX 0925 ZER-M50 CTPM241, CTPM241, Solid Carbide N/A Finish,
Item #: 26221895
Brand: Ceratizit
Model #: 5635542500
Product Specifications
| Insert Style | LNKX |
| Insert Size Code | 0925 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM241 |
| Inscribed Circle (Decimal Inch) | 0.2098 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 7.00 |
| Series | LNKX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1051 |
| Maximum Depth of Cut (Decimal Inch) | 0.2494 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3543 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Secondary Workpiece Material Code | P; S |
| Iso Code | LNKX 0925 ZER-M50 CTPM241 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
