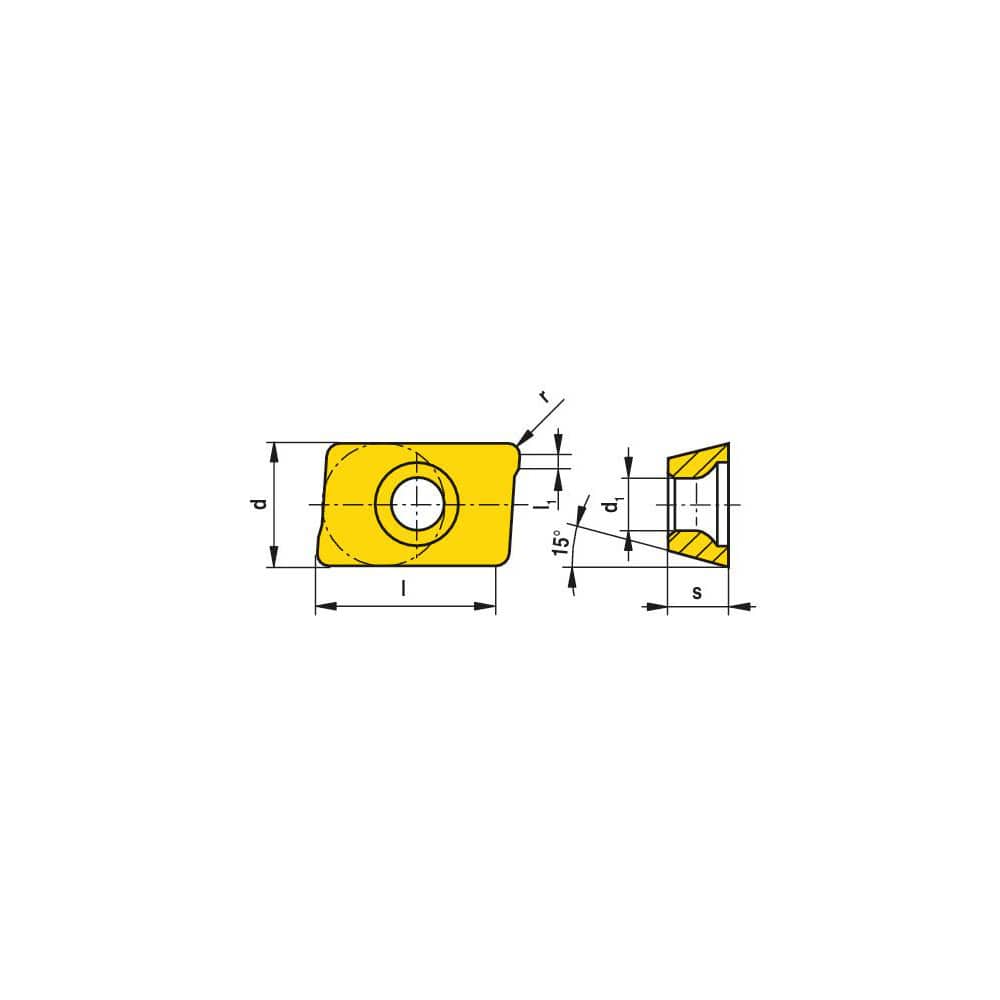

Milling Insert: ADKT 1505PDSR-29 CTCP230, CTCP230, Solid Carbide N/A Finish,
Item #: 26221671
Brand: Ceratizit
Model #: 51020020
Product Specifications
| Insert Style | ADKT |
| Insert Size Code | 1505 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP230 |
| Inscribed Circle (Decimal Inch) | 0.3768 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | ADKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4100 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5984 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | ADKT 1505PDSR-29 CTCP230 |
| Chip Breaker | 29 |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2224 |
