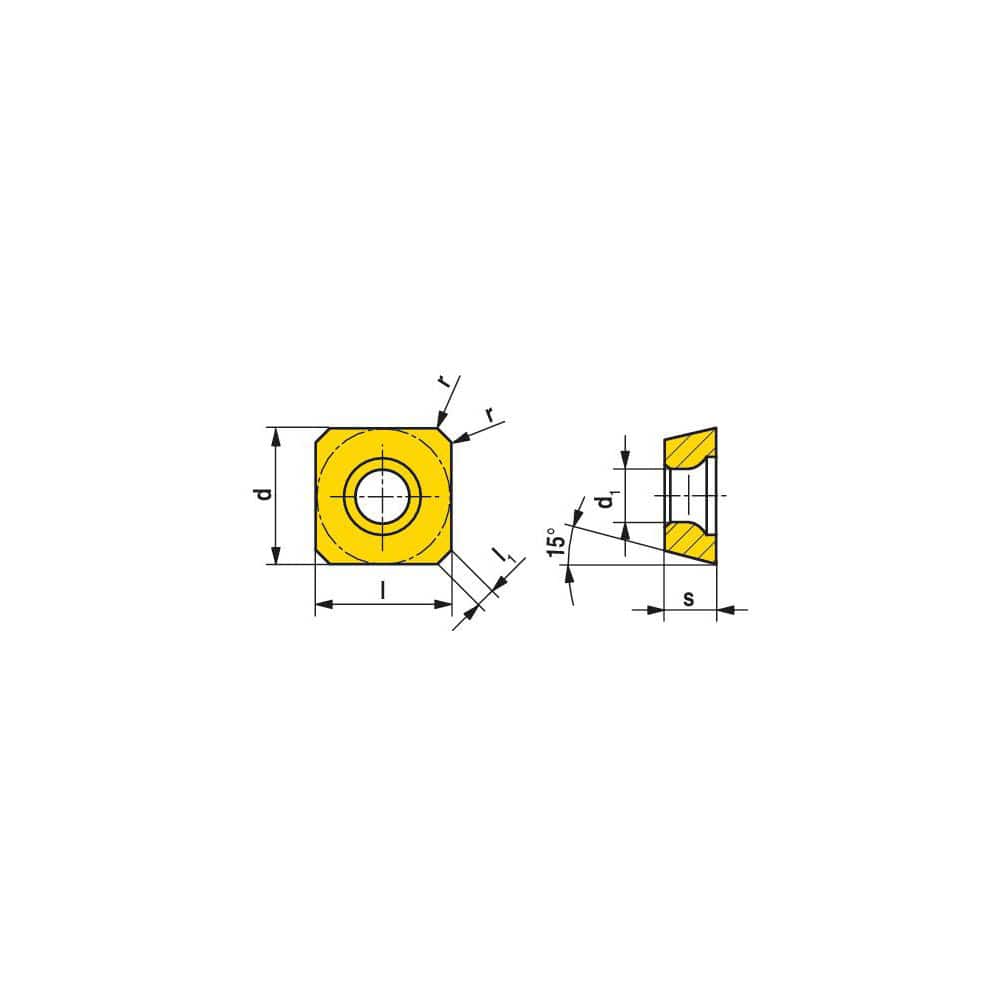

Milling Insert: SDHT 0903AESN-M31 CTC5240, CTC5240, Solid Carbide N/A Finish,
Item #: 26221218
Brand: Ceratizit
Model #: 50421509
Product Specifications
| Insert Style | SDHT |
| Insert Size Code | 0903 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTC5240 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | SDHT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.1874 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3748 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Iso Code | SDHT 0903AESN-M31 CTC5240 |
| Chip Breaker | M31 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
