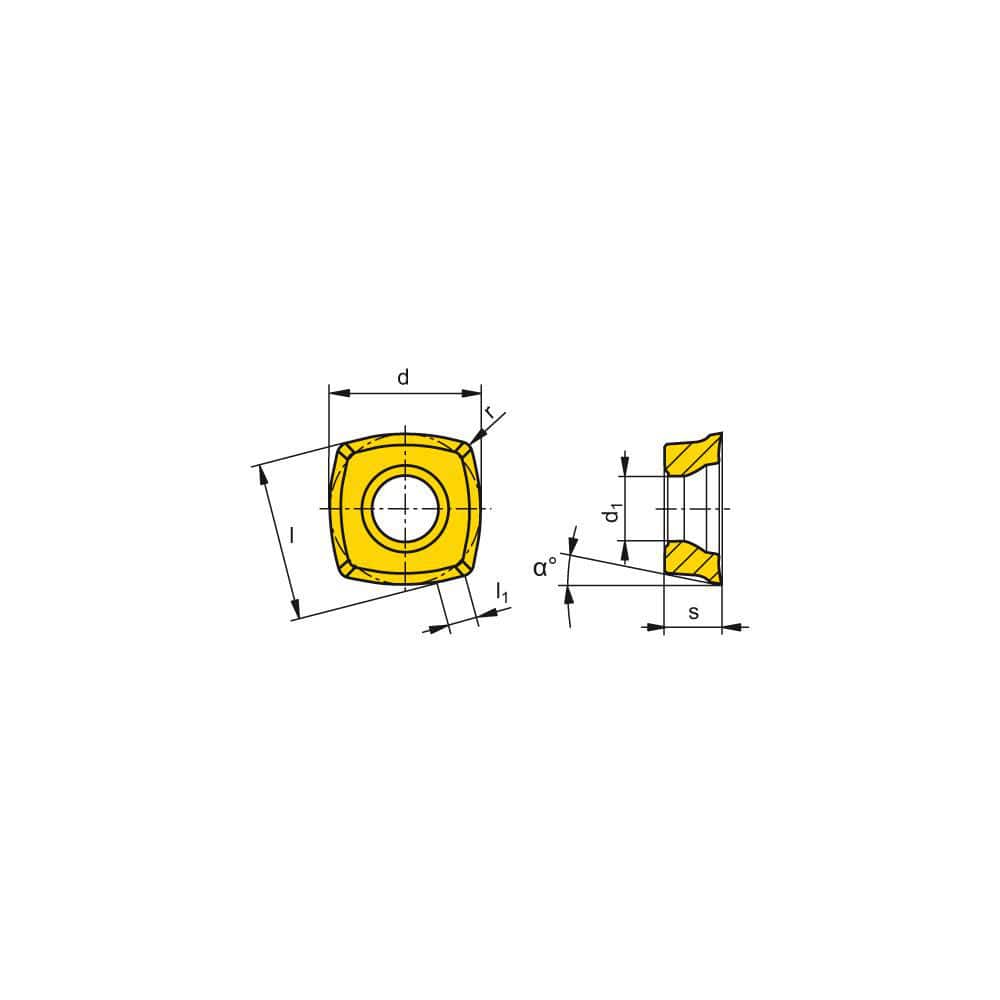

Milling Insert: XOHX 120410SR-F50 CTCS245, CTCS245, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26220715
Brand: Ceratizit
Model #: 5112456000
Product Specifications
| Insert Style | XOLX |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTCS245 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 10.00 |
| Series | XOLX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2224 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | XOHX 120410SR-F50 CTCS245 |
| Iso Code | XOHX 120410SR-F50 CTCS245 |
| Chip Breaker | F50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
