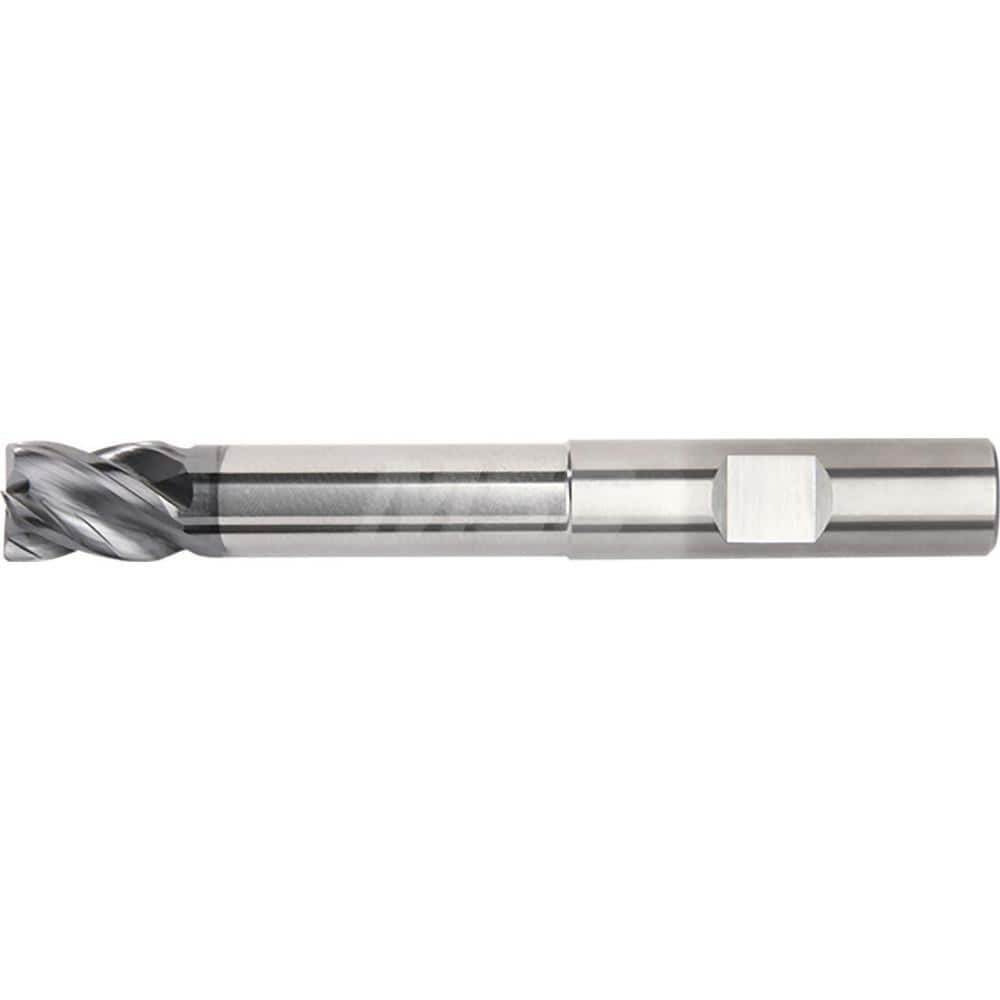

Corner Radius End Mill: 0.7874″ Dia, 4 Flutes, Solid Carbide 36 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series HARVI I TE
Item #: 26177600
Brand: Kennametal
Model #: 6929493
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 1.00 |
| Length of Cut (mm) | 38.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 36 |
| Shank Type | Weldon |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 20.0000 |
| Neck Diameter (mm) | 18.80 |
| Reach Length (mm) | 73.00 |
| Overall Length (mm) | 125.00 |
| Cutting Direction | Right Hand |
| Single Or Double End | Single |
| Manufacturers Catalog Number | H1TE4RA2000E038HBR100M |
| Coating/Finish | AlTiN |
