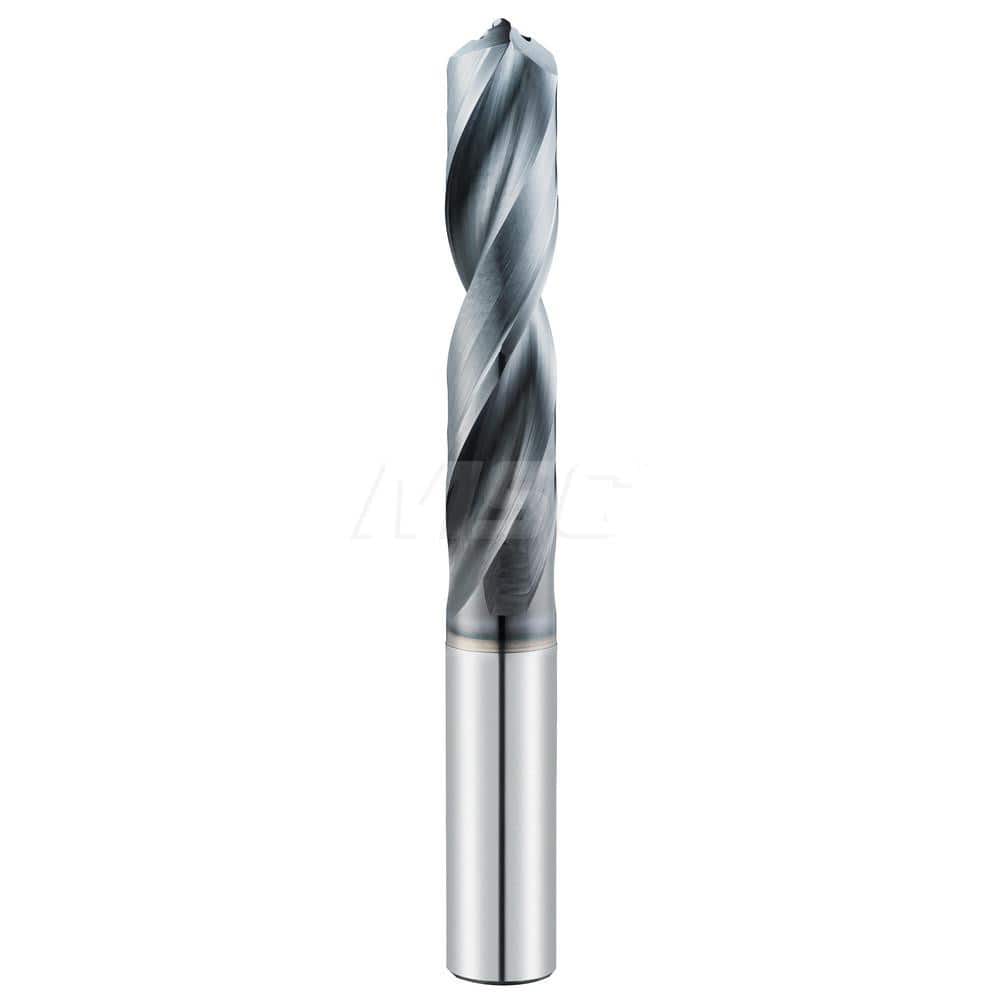

Screw Machine Length Drill Bit: 0.2559″ Dia, 135 °, Solid Carbide Ti-NAMITE-A Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 26153130
Brand: SGS
Model #: 69155
Product Specifications
| Drill Bit Size (mm) | 6.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Ti-NAMITE-A |
| Drill Point Angle | 135 |
| Spiral Type | Single |
| Flute Type | Spiral |
| Point Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Drill Point Length (mm) | 34.00 |
| Drill Point Length (Decimal Inch) | 1.3386 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h6 |
| Material Grade | Micrograin |
