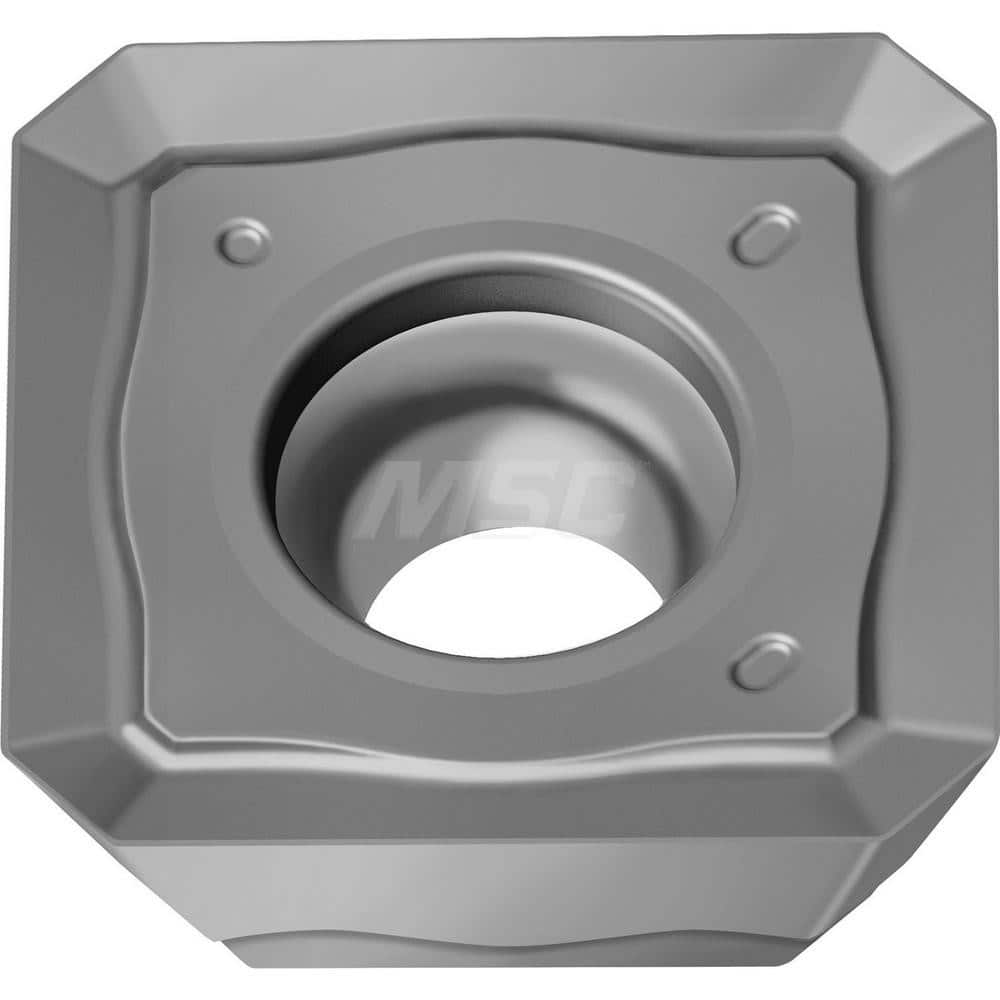

Milling Insert: WEP20, Solid Carbide N/A Finish,
Item #: 26099432
Brand: Walter
Model #: 7786054
Product Specifications
| Insert Style | SDET |
| Insert Size | 1204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WEP20 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (mm) | 0.30 |
| Insert Hand | Neutral |
| Series | SDET |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Manufacturers Catalog Number | SDET1204AZN-F57 WEP20 |
| Chip Breaker | F57 |
| Cutting Direction | Neutral |
| Shape | Square |
| Thickness (mm) | 4.76 |
| Coating/Finish | Cermet |
