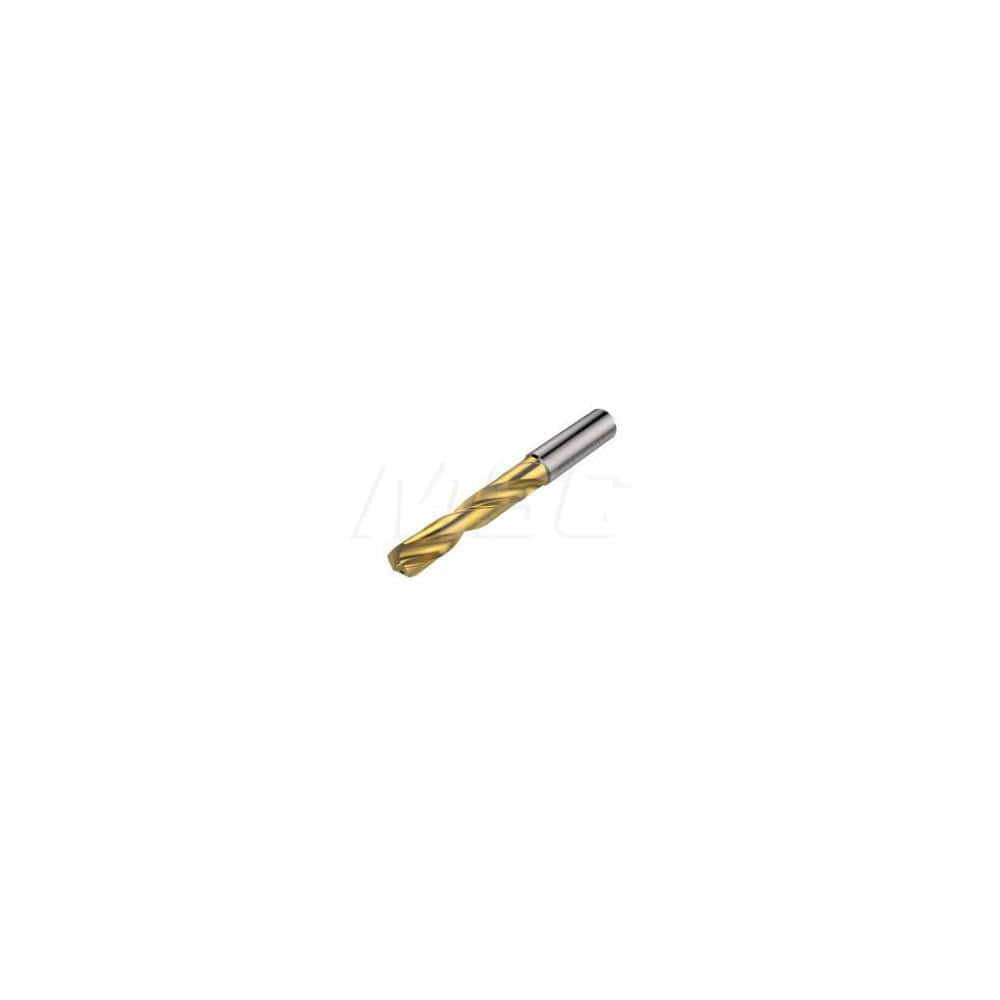

Jobber Length Drill Bit: 0.3622″ Dia, 140 °, Solid Carbide TiAlN, TiN Finish, 103″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD205A
Item #: 26046144
Brand: Seco
Model #: 02516406
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3622 |
| Drill Bit Size (mm) | 9.20 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Flute |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Flute Length (mm) | 61.00 |
| Series | SD205A |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.67 |
| Tool Performance | High Performance |
