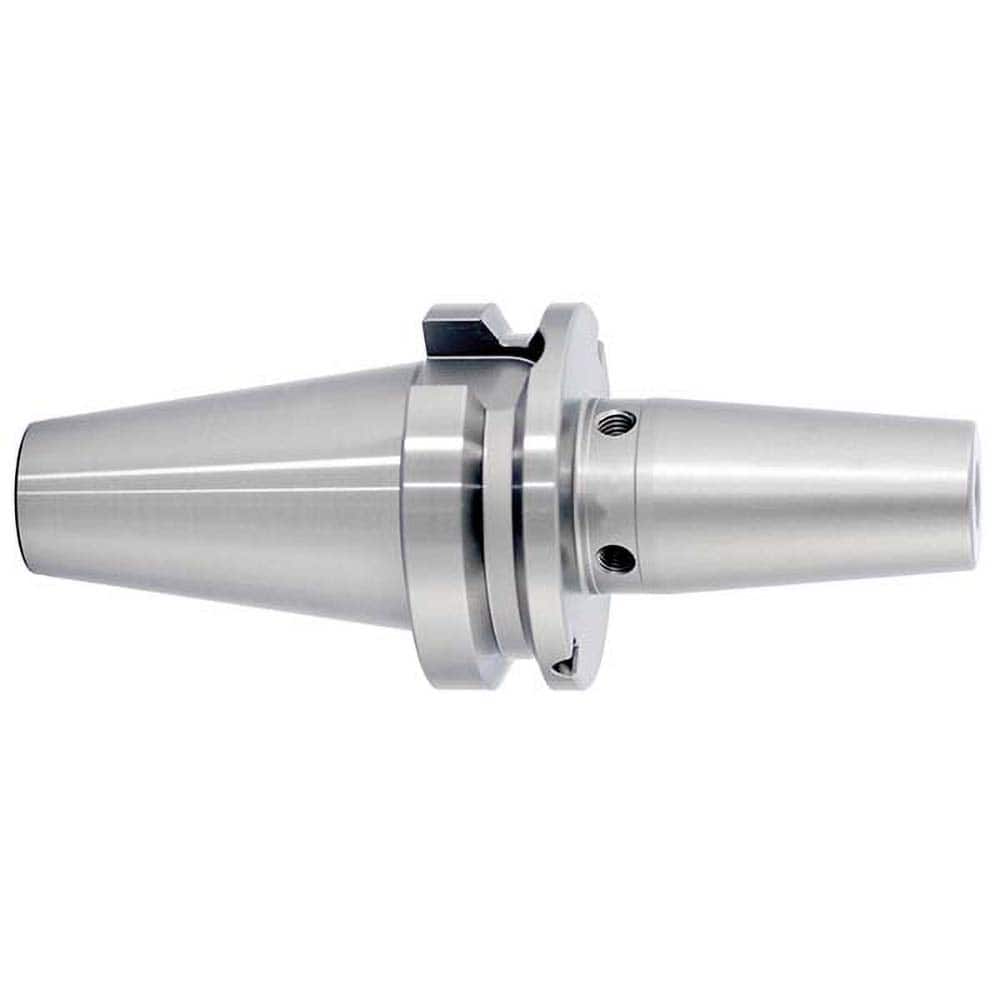

Mapal - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: BT40
Item #: 11454006
Brand: Mapal
Model #: 30323010
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: BT40 ; Hole Diameter (mm): 9.53 ; Projection (mm): 90.00 ; Nose Diameter (mm): 24.00 ; Through Coolant: Through Coolant
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (mm) | 9.53 |
| Projection (mm) | 90.00 |
| Nose Diameter (mm) | 24.00 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 41.00 |
| Overall Length (mm) | 155.40 |
| Balanced to (RPM) | 25000 |
