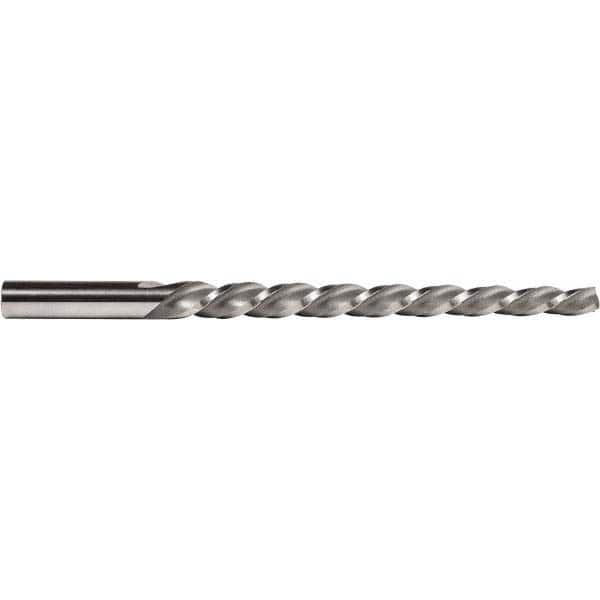

Union Butterfield - #6/0 Pin, 0.081" Diam, 0.0611" Small End, 3/32" Diam Straight Shank, 15/16" Flute, Taper Pin Reamer
Item #: 65708612
Brand: Union Butterfield
Model #: 5011158
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #6/0 |
| Small End Diameter (Decimal Inch) | 0.0611 |
| Reamer Diameter (Decimal Inch) | 0.0810 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 1-15/16 |
| Flute Length (Inch) | 15/16 |
| Number of Flutes | 2 |
| Shank Diameter (Inch) | 3/32 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
