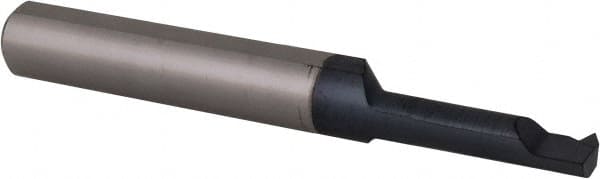

Scientific Cutting Tools - 3/4 Inch Cutting Depth, 14 to 40 TPI, 0.23 Inch Diameter, Internal Thread, Solid Carbide, Single Point Threading Bar
Item #: 62911482
Brand: Scientific Cutting Tools
Model #: TTQ230750A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALTiN+ is a nano structured ALTiN coating with special additives. It has high hardness, protects against high temperatures and has exceptional oxidation stability. It is used on a broad range of materials including high temp alloys and stainless steels.
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.2300 |
| Cutting Depth (Decimal Inch) | 0.7500 |
| Maximum Threads Per Inch | 40 |
| Minimum Threads Per Inch | 14 |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | AlTiN+ |
| Projection From Edge (Decimal Inch) | 0.0550 |
| Through Coolant | NonThrough Coolant |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Through Coolant | No |
| Tap Type | Threading Bar |
