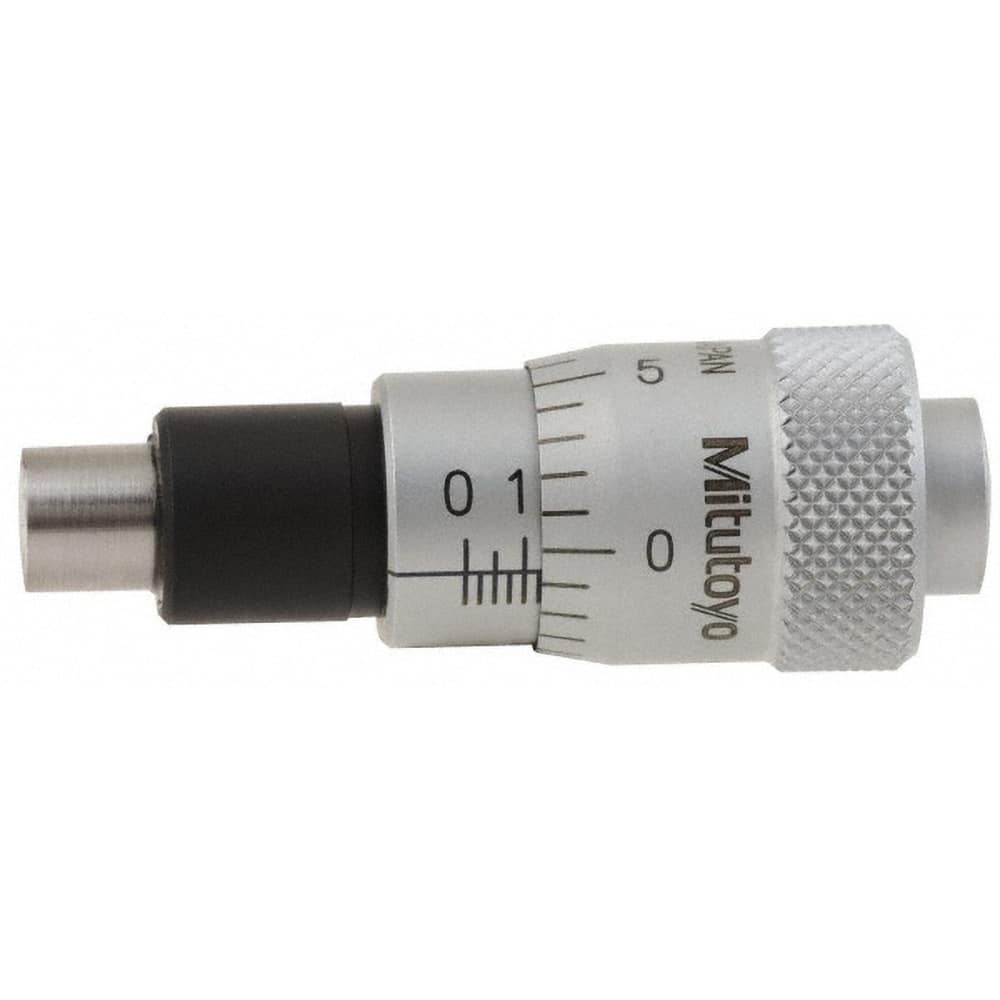

Mitutoyo - 1/2 Inch, 0.79 Inch Thimble, 6.35mm Diameter x 0.3543 Inch Long Spindle, Mechanical Micrometer Head
Item #: 06426845
Brand: Mitutoyo
Model #: 148-359
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.5000 |
| Thimble Diameter (Decimal Inch) | 0.7900 |
| Digital Counter | No |
| Spindle Diameter (mm) | 6.35 |
| Spindle Length (mm) | 9.00 |
| Spindle Length (Decimal Inch) | 0.3543 |
| Overall Length (mm) | 42.0 (Open); 48.5 (Closed) |
| Overall Length (Decimal Inch) | 2.1600 |
| Graduation (Decimal Inch) | 0.0010 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (Decimal Inch) | 0.000100 |
| Stem Length (mm) | 9.50 |
| Reverse Reading | No |
| Clamp Nut Supplied | No |
| Measuring Face Material | SKS3 |
| Finish/Coating | Chrome Plated |
| Number of Extension Rods | 0 |
| Includes | Paper Case |
