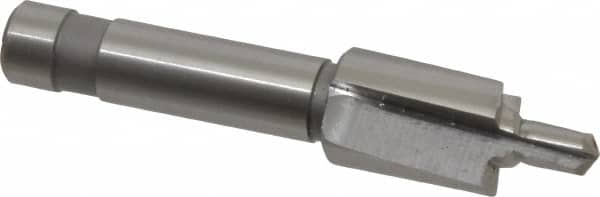

Made in USA - 5/16-24" Port, 0.692" Spotface Diam, 1/8" Tube Outside Diam, Reamer Pilot, Straight Shank, High Speed Steel Porting Tool
Item #: 00389759
Brand: Made in USA
Model #:
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Port Standard Designation | MS 16142 |
| Pilot Type | Reamer |
| Port Thread Size (Inch) | 5/16-24 |
| Tool Material | High Speed Steel |
| Tube Outside Diameter Compatibility (Inch) | 1/8 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2710 |
| Spotface Diameter (Decimal Inch) | 0.6920 |
| ShankType | Straight |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-5/16 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Seal Angle | 12 |
| Thread Type | Straight |
| Number of Flutes | 3 |
| Material Application | Ferrous Metals; Non-Ferrous Metals |
