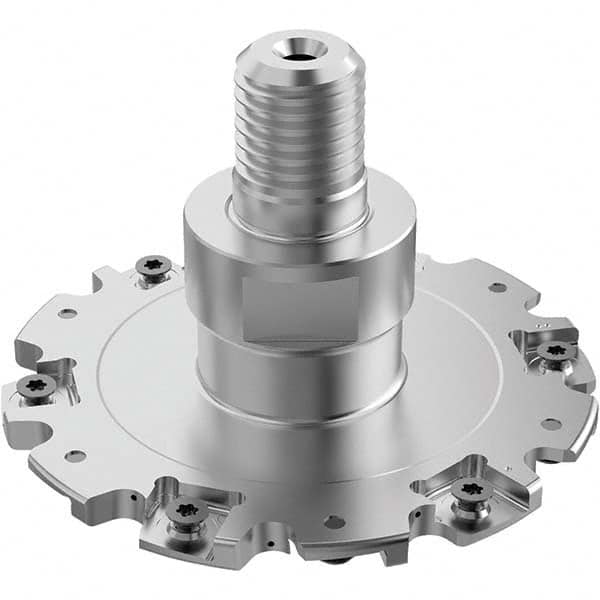

Seco - Combimaster Connection, 6mm Cutting Width, 32.8mm Depth of Cut, 100mm Cutter Diam, 12 Tooth Indexable Slotting Cutter
Item #: 96584222
Brand: Seco
Model #: 03277872
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 32.80 |
| Cutter Diameter (mm) | 100.00 |
| Modular Connection Size | M20 |
| Number of Teeth | 12 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1203 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8700 |
| Rake | Positive |
| Lead Angle | 90 |
