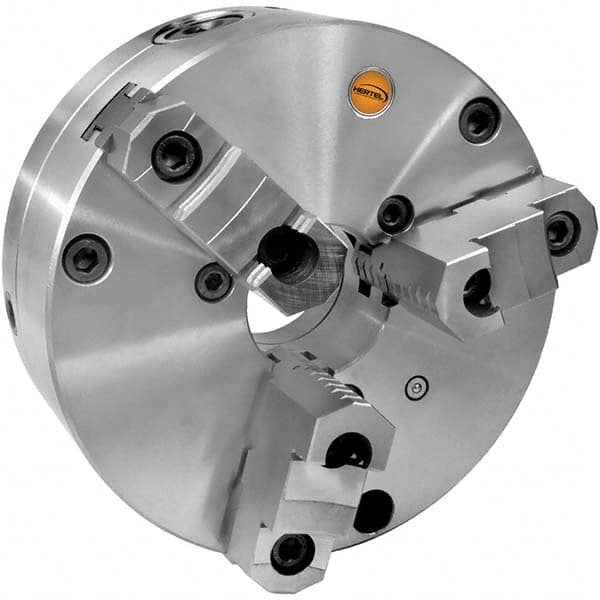

Hertel - Manual Lathe Chucks Chuck Type: Self-Centering Nominal Chuck Size: 6
Item #: 97018386
Brand: Hertel
Model #:
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 6 ; Number of Jaws: 3 ; Mount: Adjustable ; Through-Hole Diameter (Decimal Inch): 1.6535 ; Body Material: Forged Steel
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 6 |
| Number of Jaws | 3 |
| Mount | Adjustable |
| Through-Hole Diameter (Decimal Inch) | 1.6535 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Inch) | 7/64 |
| Maximum Jaw Capacity (Inch) | 6-19/64 |
| Jaw Height (Inch) | 1-45/64 |
| Adjustable | Yes |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Body Length (Inch) | 2-11/16 |
| Maximum RPM | 3500 |
