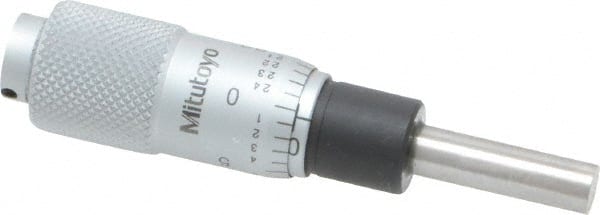

Mitutoyo - 1/2 Inch, 0.5118 Inch Thimble, 0.1969 Inch Diameter x 17.5mm Long Spindle, Mechanical Micrometer Head
Item #: 06268734
Brand: Mitutoyo
Model #: 148-112
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.5000 |
| Thimble Diameter (mm) | 13.00 |
| Thimble Diameter (Decimal Inch) | 0.5118 |
| Digital Counter | No |
| Spindle Diameter (mm) | 5.00 |
| Spindle Diameter (Decimal Inch) | 0.1969 |
| Spindle Length (mm) | 17.50 |
| Overall Length (mm) | 58.5 (Open); 71.5 (Closed) |
| Overall Length (Decimal Inch) | 2.6400 |
| Graduation (mm) | 0.0100 |
| Graduation (Decimal Inch) | 0.0010 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (Decimal Inch) | 0.000100 |
| Stem Length (mm) | 9.50 |
| Reverse Reading | No |
| Clamp Nut Supplied | No |
| Measuring Face Material | SKS3 |
| Finish/Coating | Chrome Plated |
| Number of Extension Rods | 0 |
| Includes | Paper Case |
