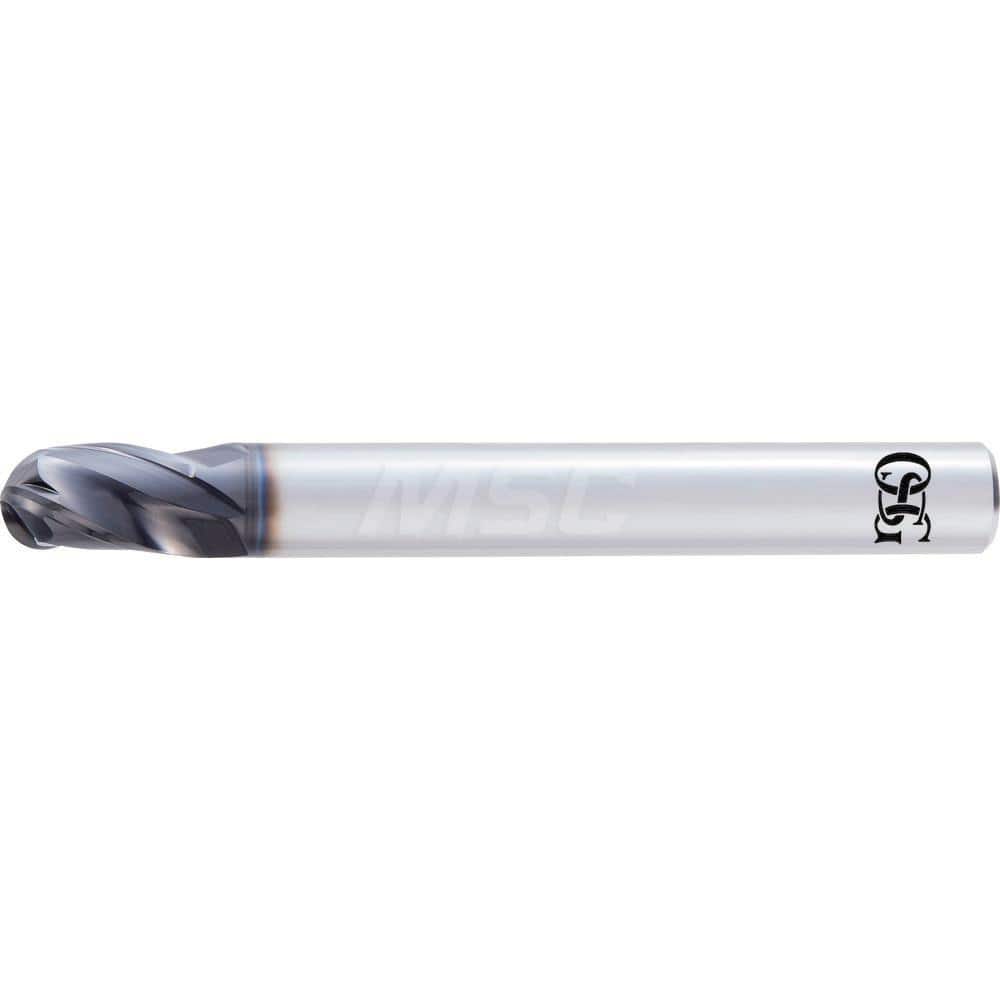

Ball End Mill: 0.315″ Dia, 0.4724″ LOC, 3 Flute, Solid Carbide 70 mm OAL, 8 mm Shank Dia, 30 ° Helix, DUROREY Coated, Single End, Series 4730
Item #: 23160427
Brand: OSG
Model #: 3188080
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Length of Cut (mm) | 12.00 |
| End Mill Material | Solid Carbide |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Length Type | Stub |
| Helix Style | Medium |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4730 |
| Flute Type | Spiral |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | DUROREY |
| Model Number | 4730 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4724 |
| Manufacturers Catalog Number | 3188080 |
