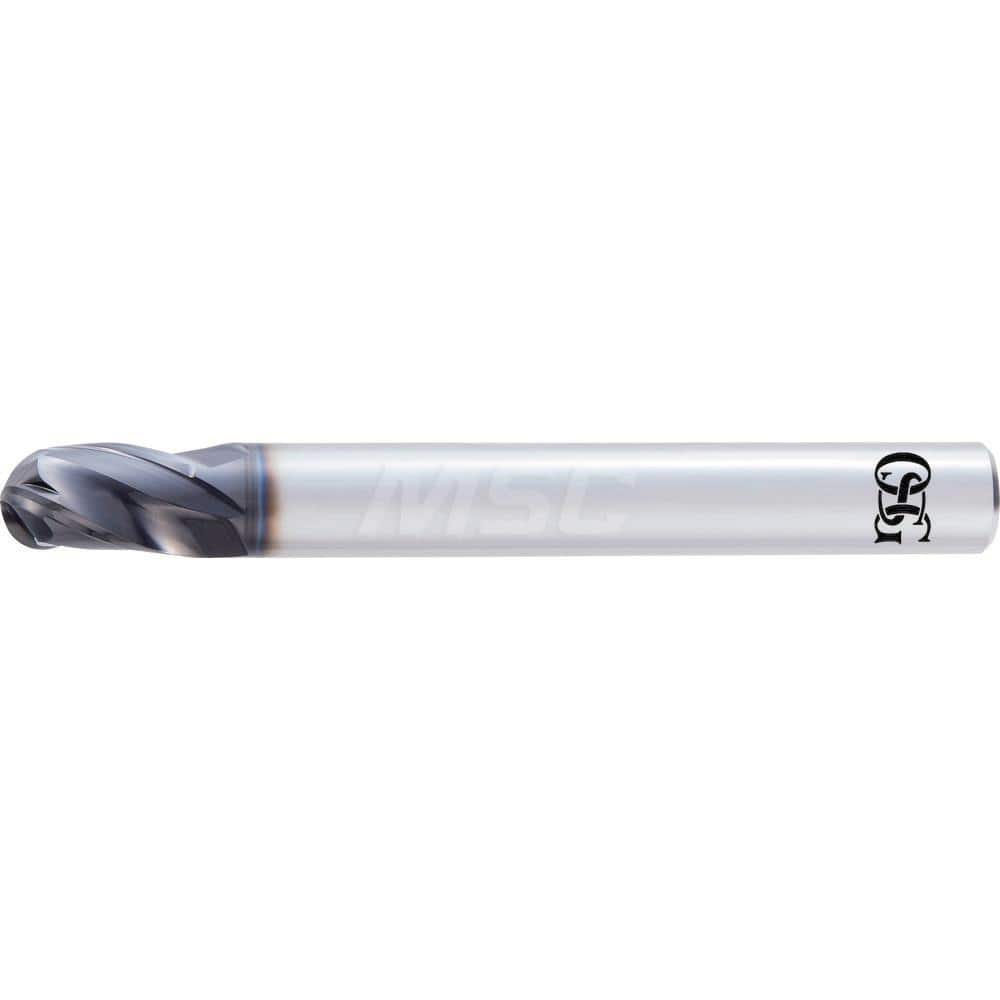

Ball End Mill: 0.375″ Dia, 0.5625″ LOC, 3 Flute, Solid Carbide 3-1/2″ OAL, 3/8″ Shank Dia, 30 ° Helix, DUROREY Coated, Single End, Series 4630
Item #: 23160310
Brand: OSG
Model #: 46300823
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 9/16 |
| End Mill Material | Solid Carbide |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | No |
| Length Type | Stub |
| Helix Style | Medium |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4630 |
| Flute Type | Spiral |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | DUROREY |
| Model Number | 4630 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5625 |
| Manufacturers Catalog Number | 46300823 |
