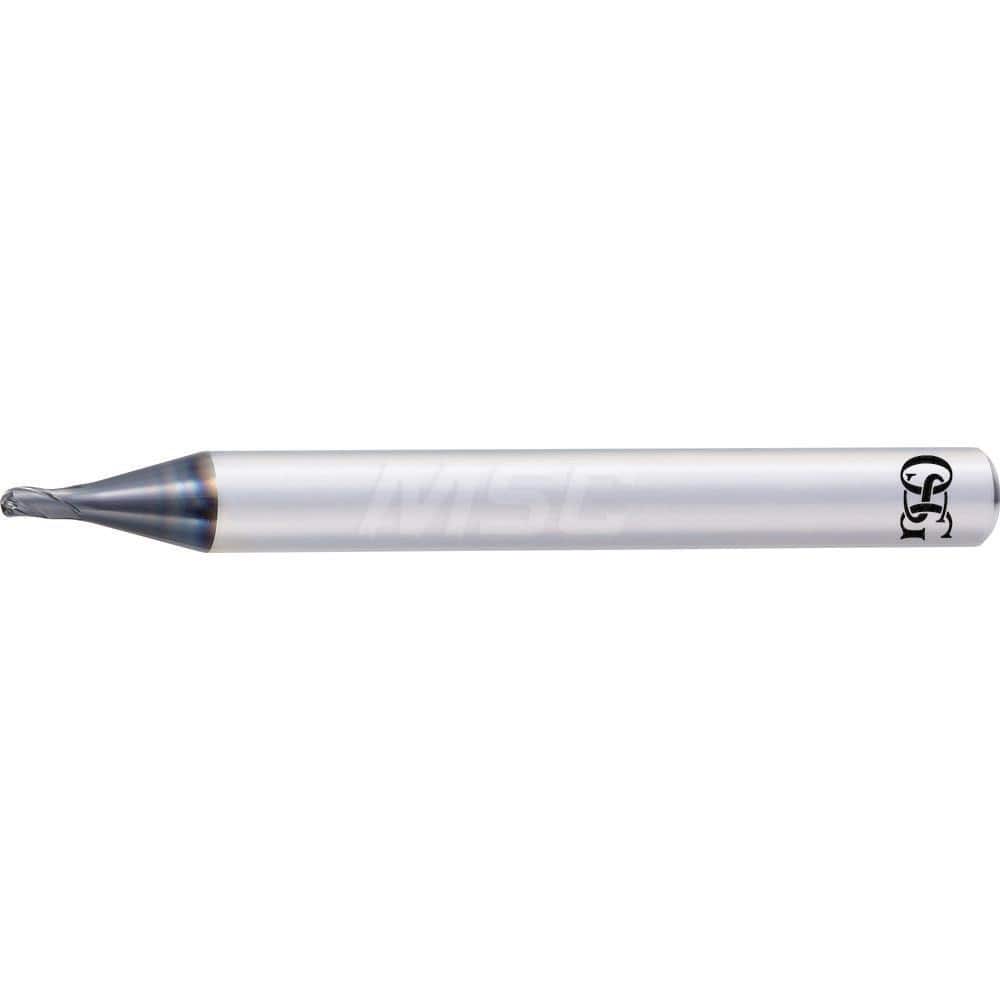

Ball End Mill: 0.1875″ Dia, 0.1875″ LOC, 3 Flute, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 30 ° Helix, DUROREY Coated, Single End, Series 4630
Item #: 23160245
Brand: OSG
Model #: 46300523
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 3/16 |
| End Mill Material | Solid Carbide |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Length Type | Stub |
| Helix Style | Medium |
| Shank Diameter (Inch) | 1/4 |
| Neck Diameter (Decimal Inch) | 0.1811 |
| Neck Diameter (mm) | 0.18 |
| Neck Length (Inch) | 3/4 |
| Neck Length (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4630 |
| Flute Type | Spiral |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | DUROREY |
| Model Number | 4630 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1875 |
| Manufacturers Catalog Number | 46300523 |
