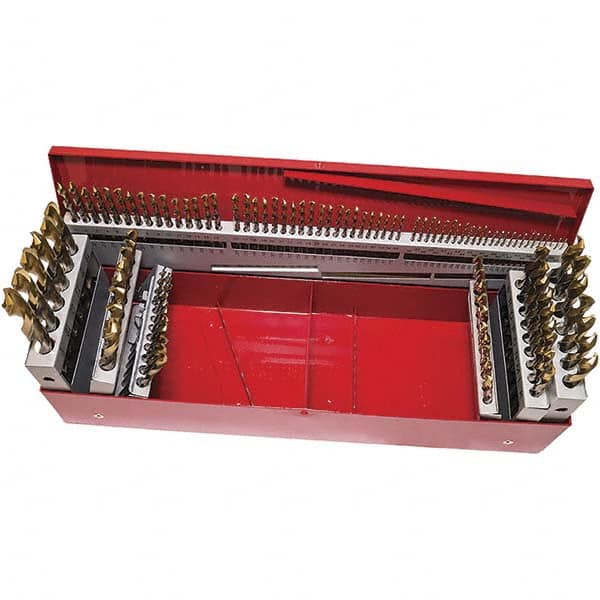

DORMER - 1/16 to 1/2", 118° Point, TiN Finish, High Speed Steel Jobber Length Drill Bit Set
Item #: 80980832
Brand: DORMER
Model #: 0574362
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Drill Bit Material | High Speed Steel |
| Drill Bit Set Type | Jobber Length Drill Bits |
| Minimum Drill Bit Size (Decimal Inch) | 0.0400 |
| Minimum Drill Bit Size (Inch) | 1/16 |
| Minimum Drill Bit Size (Letter) | A |
| Minimum Drill Bit Size (Wire) | #60 |
| Maximum Drill Bit Size (Wire) | #1 |
| Maximum Drill Bit Size (Inch) | 1/2 |
| Maximum Drill Bit Size (Letter) | Z |
| Drill Point Angle | 118 |
| Number of Pieces | 115 |
| Drill Bit Finish/Coating | TiN |
| Drill Bit Size2 (Decimal Inch) | 0.0400; 0.0410; 0.0420; 0.0430; 0.0465; 0.0520; 0.0550; 0.0595; 0.0625; 0.0635; 0.0670; 0.0700; 0.0730; 0.0760; 0.0781; 0.0785; 0.0810; 0.0820; 0.0860; 0.0890; 0.0935; 0.0938; 0.0960; 0.0980; 0.0995 |
| Drill Bit Size (Wire) | #1; #2; #3; #4; #5; #6; #7; #8; #9; #10; #11; #12; #13; #14; #15; #16; #17; #18; #19; #20; #21; #22; #23; #24; #25; #26; #27; #28; #29; #30; #31; #32; #33; #34; #35; #36; #37; #38; #39; #40; #41; #42; #43; #44; #45; #46; #47; #48; #49; #50; #51; #52; #53; |
| Drill Bit Size (Letter) | A; B; C; D; E; F; G; H; I; J; K; L; M; O; P; Q; R; S; T; U; V; W; X; Y; Z |
| Drill Bit Size (Inch) | 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 11/64; 3/16; 13/64; 7/32; 15/64; 1/4; 17/64; 9/32; 19/64; 5/16; 21/64; 11/32; 23/64; 3/8; 25/64; 13/32; 27/64; 7/16; 29/64; 15/32; 31/64; 1/2 |
| Overall Length (Decimal Inch) | 1.6250; 1.7500; 1.8750; 2.0000; 2.1250; 2.2500; 2.3750; 2.5000; 2.6250; 2.7500; 2.8750; 3.0000; 3.1250; 3.2500; 3.3750; 3.5000; 3.6250; 3.7500; 3.8750; 4.0000; 4.1250; 4.2500; 4.3750; 4.5000; 4.6250 |
| Overall Length (Inch) | 1-5/8; 1-3/4; 1-7/8; 2; 2-1/8; 2-1/4; 2-3/8; 2-1/2; 2-5/8; 2-3/4; 2-7/8; 3; 3-1/8; 3-1/4; 3-3/8; 3-1/2; 3-5/8; 3-3/4; 3-7/8; 4; 4-1/8; 4-1/4; 4-3/8; 4-1/2; 4-5/8; 4-3/4; 4-7/8; 5; 5-1/8; 5-1/4; 5-3/8; 5-1/2; 5-5/8; 5-3/4; 5-7/8; 6 |
| Drill Bit Size (Wire) | #47; #48; #49; #50; #51; #52; #53; #54; #55; #56; #57; #58; #59; #60 |
| Drill Bit Size3 (Decimal Inch) | 0.1015; 0.1040; 0.1065; 0.1094; 0.1100; 0.1110; 0.1130; 0.1160; 0.1200; 0.1250; 0.1285; 0.1360; 0.1405; 0.1406; 0.1440; 0.1470; 0.1495; 0.1520; 0.1540; 0.1563; 0.1570; 0.1590; 0.1610; 0.1660; 0.1695; 0.1719; 0.1730; 0.1770; 0.1800 |
| Drill Bit Size4 (Decimal Inch) | 0.1820; 0.1850; 0.1875; 0.1890; 0.1910; 0.1935; 0.1960; 0.1990; 0.2010; 0.2031; 0.2040; 0.2055; 0.2090; 0.2130; 0.2188; 0.2210; 0.2280; 0.2340; 0.2344; 0.2374; 0.2421; 0.2461; 0.2500; 0.2571; 0.2610; 0.2656; 0.2661; 0.2720; 0.2772; 0.2811; 0.2813 |
| Drill Bit Size5 (Decimal Inch) | 0.2902; 0.29490.2969; 0.3020; 0.3125; 0.3161; 0.3228; 0.3281; 0.3319; 0.3390; 0.3437; 0.3480; 0.3580; 0.3594; 0.3680; 0.3750; 0.3772; 0.3858; 0.3906; 0.3969; 0.4039; 0.4063; 0.4130; 0.4219; 0.4375; 0.4531; 0.4687; 0.4844; 0.5000 |
| Point Type | Split Point |
| Set Includes | (115) Jobber Length Drills |
| PSC Code | 5133 |
| Through Coolant | No |
