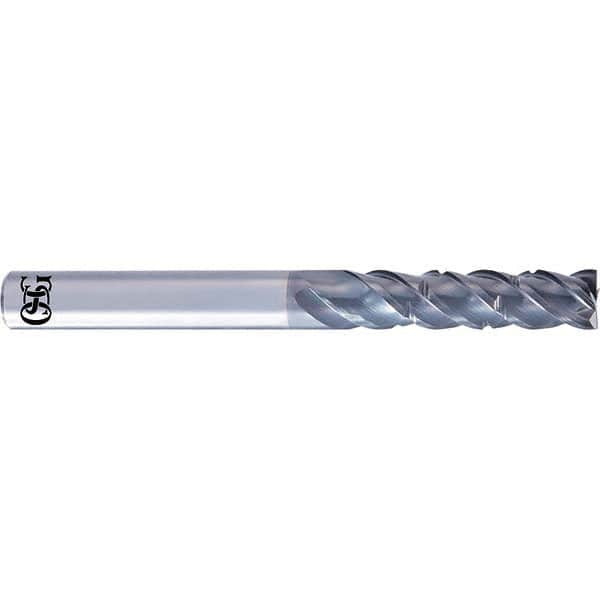

OSG - Roughing & Finishing End Mills Mill Diameter (mm): 12.00 Mill Diameter (Decimal Inch): 0.2362
Item #: 20060349
Brand: OSG
Model #: 8556327
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (mm): 12.00 ; Mill Diameter (Decimal Inch): 0.2362 ; End Type: Square ; Corner Radius (Decimal Inch): 0.0000 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| End Type | Square |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Duarise |
| Length of Cut (mm) | 38.0000 |
| Shank Diameter (mm) | 12 |
| Overall Length (mm) | 100 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | Yes |
| Shank Type | Straight |
| Helix Angle | Variable |
| Single or Double End | Single |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.000/-0.020 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | 8208 |
