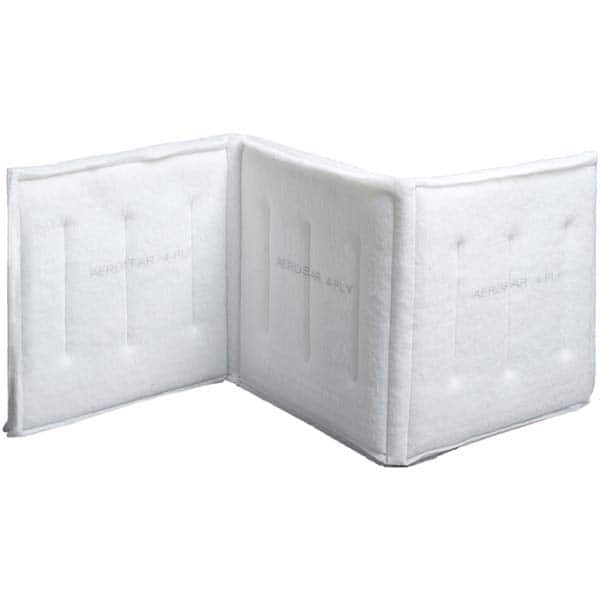

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Link Nominal Height (Inch): 25
Item #: 14947303
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Link ; Nominal Height (Inch): 25 ; Nominal Width (Inch): 28 ; Nominal Depth (Inch): 1 ; MERV Rating: 10 ; Media Material: Polyester
Filter Type | Link |
Nominal Height (Inch) | 25 |
Nominal Width (Inch) | 28 |
Nominal Depth (Inch) | 1 |
MERV Rating | 10 |
Media Material | Polyester |
Integrated Frame | Yes |
Actual Height (Decimal Inch) | 25.000 |
Actual Width (Decimal Inch) | 28.000 |
Actual Depth (Inch) | 1 |
Maximum Air Flow (FPM) | 500 |
Initial Resistance at FPM (Inches w.g.) | 0.05 (at 74 FPM); 0.11 (at 148 FPM); 0.18 ( at 221 FPM); 0.26 (at 295 FPM); 0.35 (at 369 FPM) |
Final Resistance at FPM (Inches w.g.) | 1.5 |
Maximum Temperature (F) | 120.000 |
Frame Material | Wire |
Standards Met | UL 900 |
