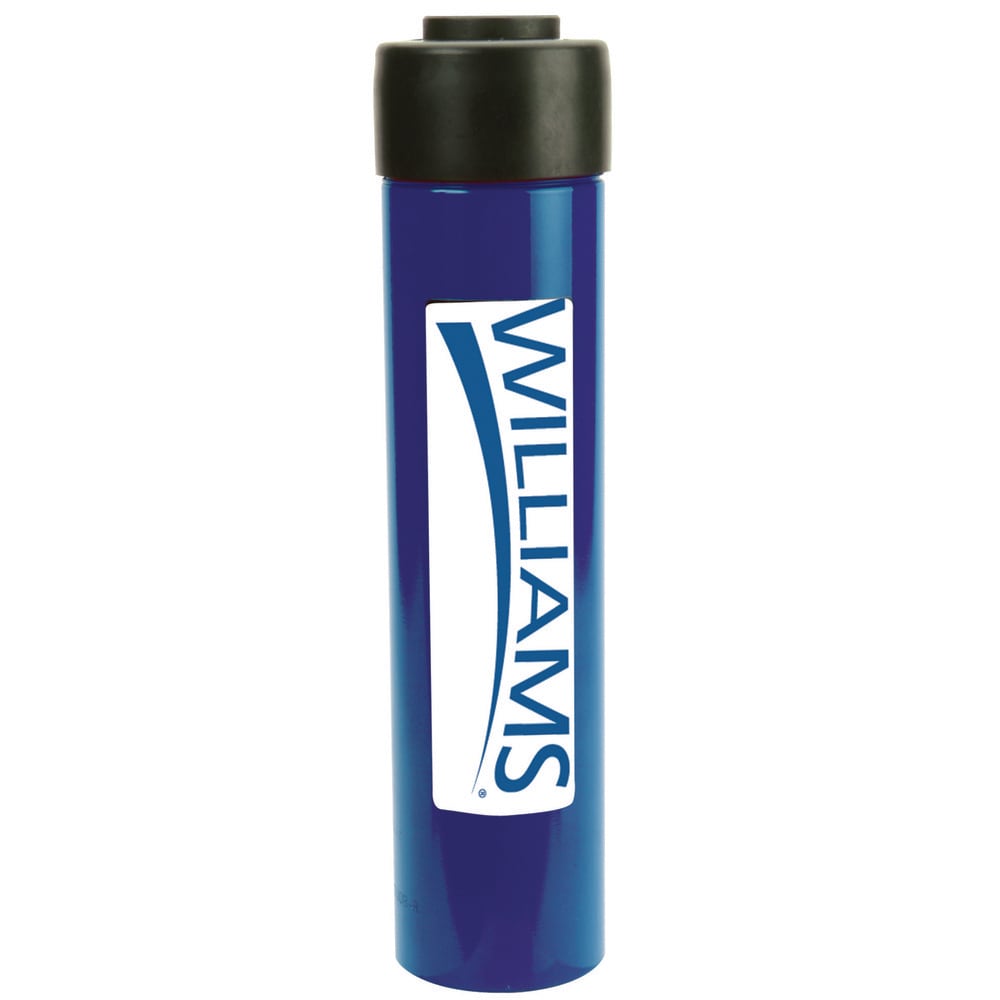

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 10 TON; Stroke Length: 7.95; Piston Stroke (Decimal Inch): 7.9500; Oil Capacity: 17.81; Cylinder Effective Area: 2.24; Lowered Height: 11.85
Item #: 54375654
Brand: Williams
Model #: 6C10T08
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | 7.95 |
| Piston Stroke (Decimal Inch) | 7.9500 |
| Oil Capacity | 17.81 |
| Cylinder Effective Area | 2.24 |
| Lowered Height | 11.85 |
| Retracted Length | 11.85 |
| Extended Length | 19.80 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.26 |
| Rod Diameter | 1.69 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | 2.95 |
| Y Center Hole Diameter | 1.69 |
| Maximum Height (Inch) | 19.80 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
