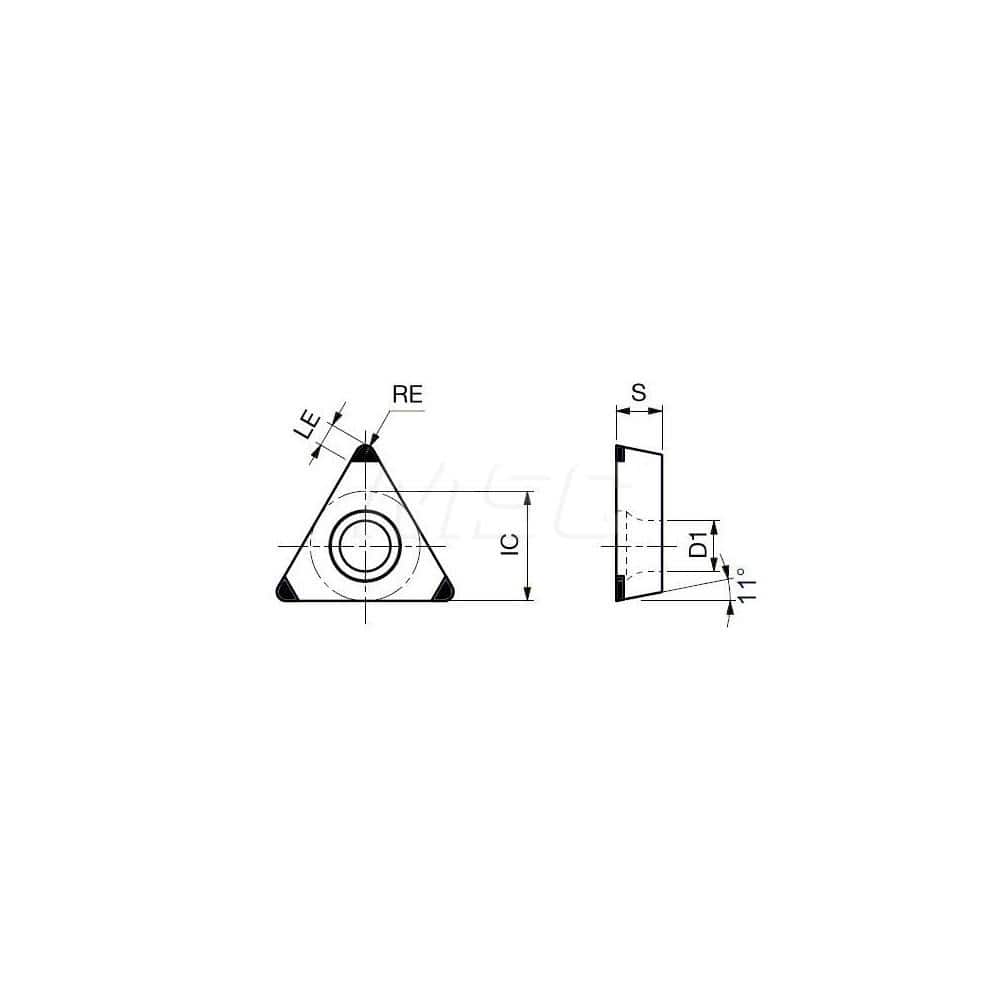

Turning Insert: 3QP-TPGW222 BX470, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TPGW
Item #: 20897716
Brand: Tungaloy
Model #: 6852716
Product Specifications
| Insert Style | TPGW |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX470 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | 3QPTPGW222BX470 |
| Iso Code | 3QP-TPGW222 BX470 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
